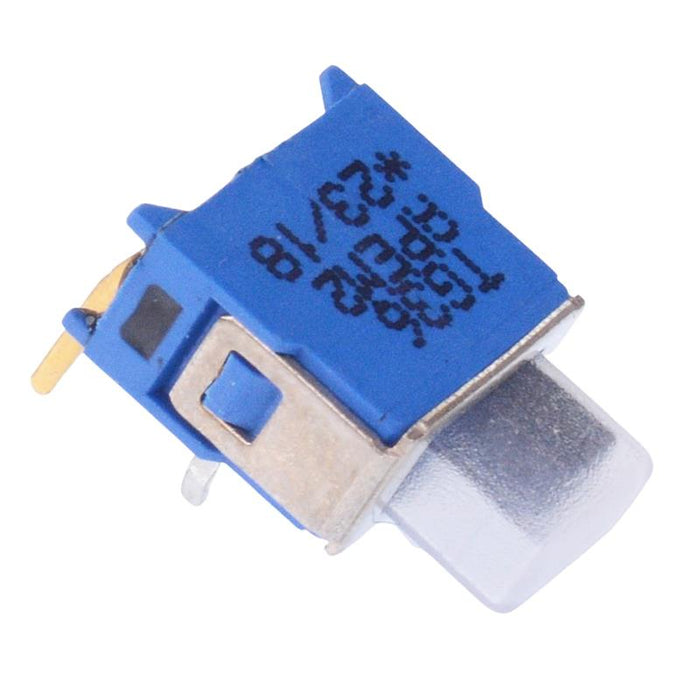

TG36W000050 On-On Sub-Miniature Right Angle PCB Slide Switch SPDT APEM
by APEM
SKU 486197
MPN: TG36W000050
Availability:
100 in stock
Original price
£5.51
-
Original price
£5.51
Original price
£5.51
£5.51
-
£5.51
Current price
£5.51
The TG36W000050 is a sub-miniature slide switch manufactured by APEM featuring SPDT contacts, designed for horizontal PCB mounting. The slide switch features a single piece case and epoxy sealed terminals making them suitable for a wide range of applications.
On-On operation SPDT contacts Right angle horizontal mounting Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20V
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4A 20V |
| Current Rating | 0.4A |
| Electrical Life | 60,000 Cycles |
| Material | Thermoplastic |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to 85°C |
| Pitch | 2.54mm |
| Product Series | TG |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 20VAC/DC |
