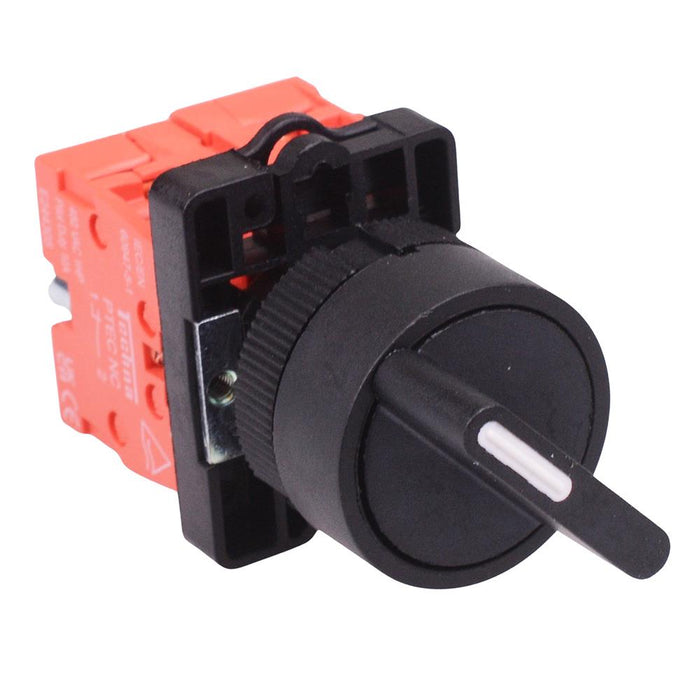

Techna PtecSN3M Momentary 3 Position Plastic Selector Switch 10A 2NC
by Techna
SKU 935427
MPN: PtecSN3M-2NC
Availability:
Only 4 left!
Original price
£11.45
-
Original price
£11.45
Original price
£11.45
£11.45
-
£11.45
Current price
£11.45
3 position selector switch manufactured by Techna, featuring 2NC contacts and a momentary switching mechanism suitable for 22.5mm diameter industrial applications.
Momentary mechanism 3 positions Plastic construction Supplied with mounting block Fits panel thickness 1-6mm 22.5mm diameter Rated insulation voltage: 500V Rated thermal current: 10A 2NC contacts
Specification
| Actuation | Momentary |
| Back Order Lead Time | 5 Days |
| Colour | Black |
| Contact Configuration | 2NC |
| Contact Rating | 10A 500V |
| Current Rating | 10A |
| Head Type | Selector |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 22.5mm |
| Product Series | Ptec |
| Terminal Type | Screw |
| Voltage Rating | 500V |
