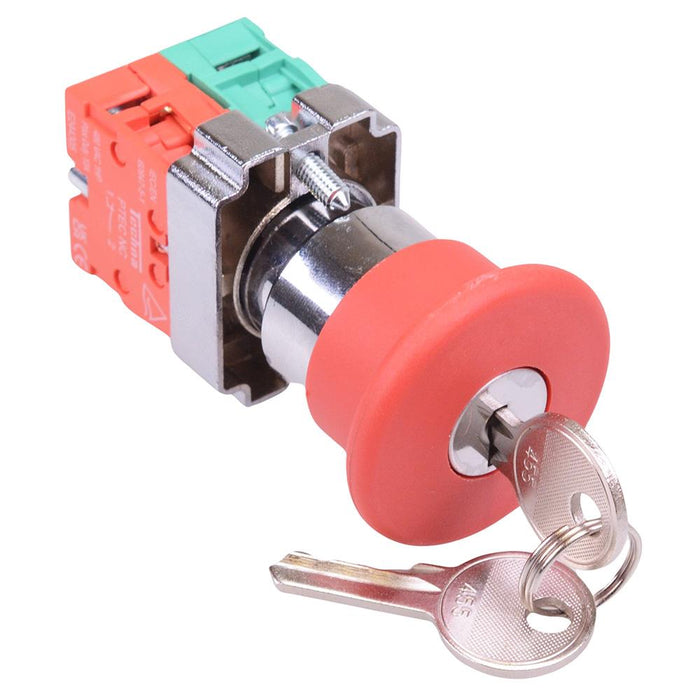

Techna PtecMetMushK40 Key Release 40mm Emergency Stop Button Switch 10A 1NO-1NC
by Techna
SKU 935365
MPN: PtecMetMushK40-1NO-1NC
Availability:
Only 5 left!
Original price
£18.88
-
Original price
£18.88
Original price
£18.88
£18.88
-
£18.88
Current price
£18.88
40mm emergency stop button key release switch manufactured by Techna featuring 1NO and 1NC contacts and a 'turn to release' actuator suitable for industrial applications. The switch features a metal design and is suitable for industry standard 22.5mm mounting.
Button diameter: 40mm Metal construction Supplied with mounting block Fits panel thickness 1-6mm 22.5mm diameter UL and CSA approved Rated insulation voltage: 500V Rated thermal current: 10A 1NO and 1NC contacts
Specification
| Actuation | Key Release |
| Back Order Lead Time | 5 Days |
| Colour | Red |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 10A 500V |
| Current Rating | 10A |
| Head Type | Mushroom |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 22.5mm |
| Product Series | Ptec |
| Terminal Type | Screw |
| Voltage Rating | 500V |
