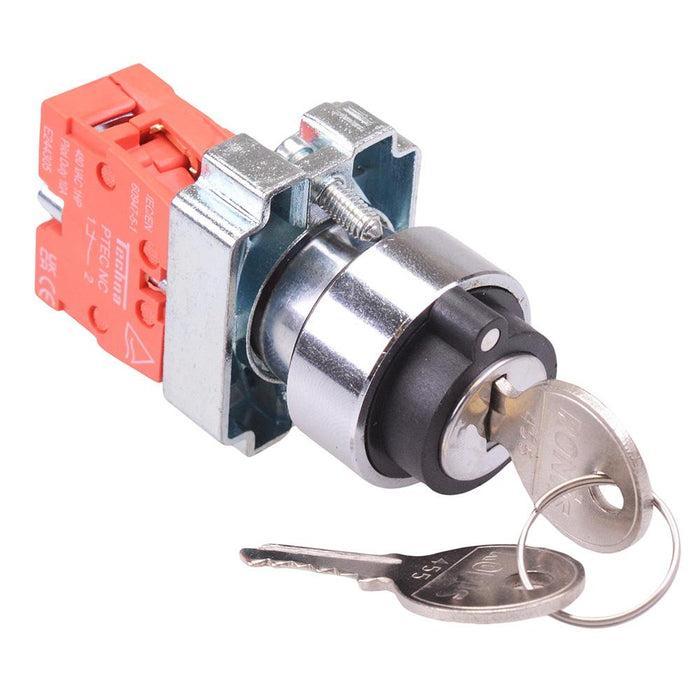

Techna PtecMetK3MRC 3 Position Momentary Metal Key Switch 10A 1NC
by Techna
SKU 935295
MPN: PtecMetK3MRC-1NC
Availability:
9 in stock
Original price
£15.40
-
Original price
£15.40
Original price
£15.40
£15.40
-
£15.40
Current price
£15.40
3 position momentary key operated switch from Techna, featuring a 1NC contact and a metallic housing and suitable for standard 22.5mm mounting. The switch comes with 2 keys removable only in the central position.
Momentary mechanism Metallic housing Supplied with mounting block Fits panel thickness 1-6mm 22.5mm diameter Rated insulation voltage: 500V Rated thermal current: 10A 1NC contact
Specification
| Actuation | Momentary |
| Back Order Lead Time | 5 Days |
| Contact Configuration | 1NC |
| Contact Rating | 10A 500V |
| Current Rating | 10A |
| Head Type | Key |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 22.5mm |
| Product Series | Ptec |
| Terminal Type | Screw |
| Voltage Rating | 500V |
