Techna PtecMetK2CRL 2 Position Metal Key Switch 10A 2NO
by Techna
SKU 935288
MPN: PtecMetK2CRL-2NO
Availability:
Only 3 left!
Original price
£17.80
-
Original price
£17.80
Original price
£17.80
£17.80
-
£17.80
Current price
£17.80

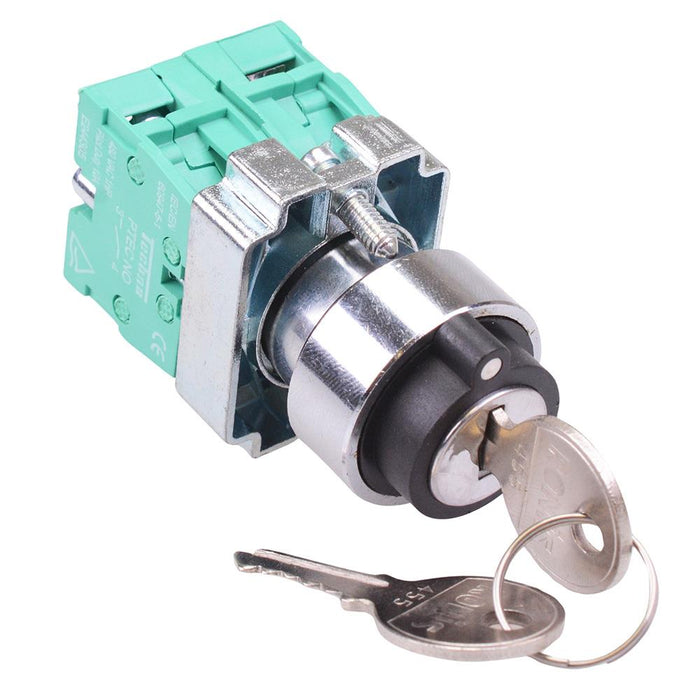

2 position key operated switch from Techna, featuring 2NO contacts and a metallic housing and suitable for standard 22.5mm mounting. The switch comes with 2 keys removable only in the left position.
Latched mechanism Metallic housing Supplied with mounting block Fits panel thickness 1-6mm 22.5mm diameter Rated insulation voltage: 500V Rated thermal current: 10A 2NO contacts
Specification
| Actuation | Latching |
| Back Order Lead Time | 5 Days |
| Contact Configuration | 2NO |
| Contact Rating | 10A 500V |
| Current Rating | 10A |
| Head Type | Key |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 22.5mm |
| Product Series | Ptec |
| Terminal Type | Screw |
| Voltage Rating | 500V |
