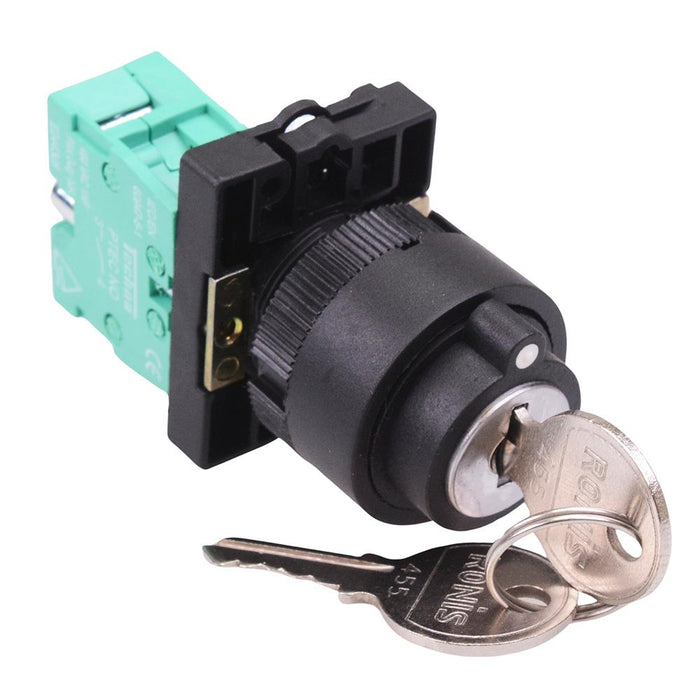

Techna PtecK3CRC 3 Position Plastic Key Switch 10A 1NO
by Techna
SKU 935403
MPN: PtecK3CRC-1NO
Availability:
7 in stock
Original price
£18.34
-
Original price
£18.34
Original price
£18.34
£18.34
-
£18.34
Current price
£18.34
3 position key operated switch from Techna, featuring a 1NO contact and a plastic housing and suitable for standard 22.5mm mounting. The switch comes with 2 keys removable only in the central position.
Latched mechanism Plastic housing Supplied with mounting block Fits panel thickness 1-6mm 22.5mm diameter Rated insulation voltage: 500V Rated thermal current: 10A 1NO contact
Specification
| Actuation | Latching |
| Back Order Lead Time | 5 Days |
| Colour | Black |
| Contact Configuration | 1NO |
| Contact Rating | 10A 500V |
| Current Rating | 10A |
| Head Type | Key |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 22.5mm |
| Product Series | Ptec |
| Terminal Type | Screw |
| Voltage Rating | 500V |
