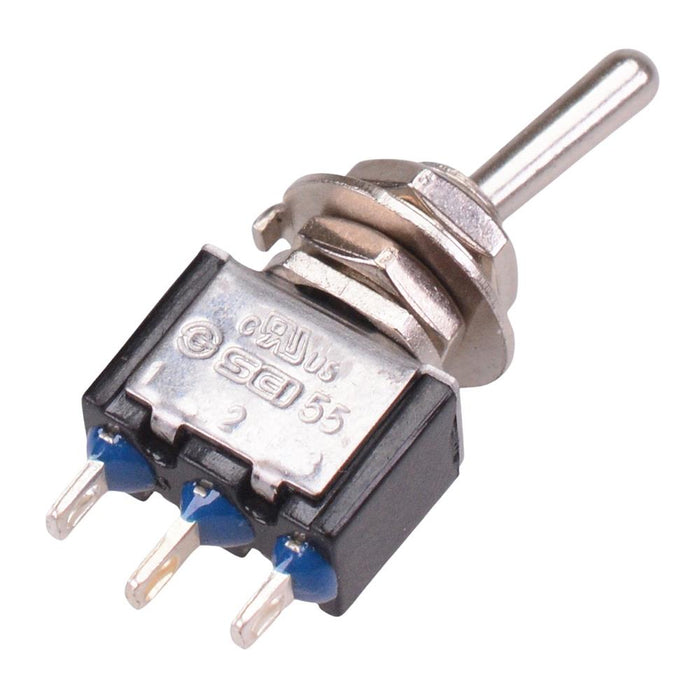

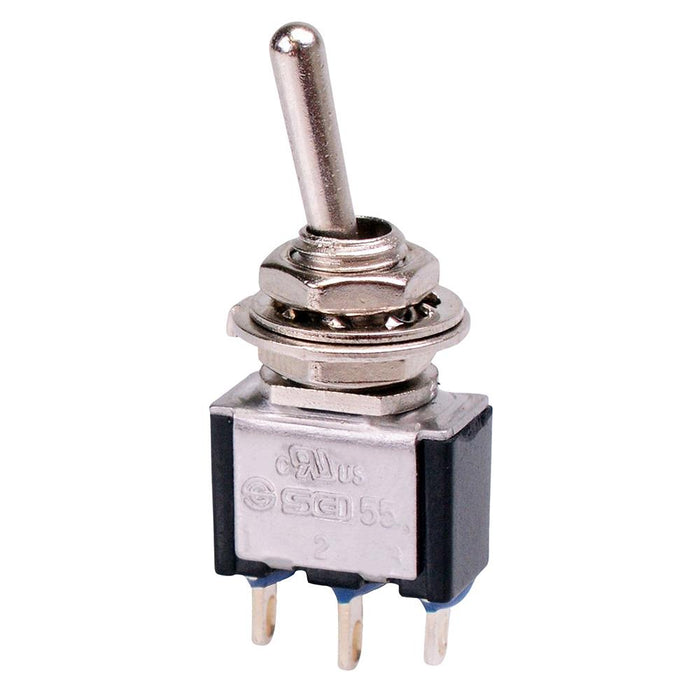

TA102A1 On-On Miniature Toggle Switch SPDT 3A
by SCI
SKU 480162
MPN: TA102A1
Availability:
917 in stock
Original price
£1.09
-
Original price
£1.09
Original price
£1.09
£1.09
-
£1.09
Current price
£1.09
TA102A1 high quality miniature size On-On toggle switch featuring SPDT contacts suitable for low power applications requiring a reliable cost effective switch.
On-On action
SPDT contacts
6.2mm panel cut-out
Solder contacts
Maximum current: 3A
Maximum voltage: 250VAC
Epoxy sealed for dust and moisture resistance
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +65°C |
| Panel Cut Out | 6.2mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
