SRL-5-E-D-2 On-On Keylock Key Switch SPDT 1A 125V
by Lorlin
SKU 481503
MPN: SRL-5-E-D-2
Availability:
47 in stock
Original price
£7.52
-
Original price
£7.52
Original price
£7.52
£7.52
-
£7.52
Current price
£7.52

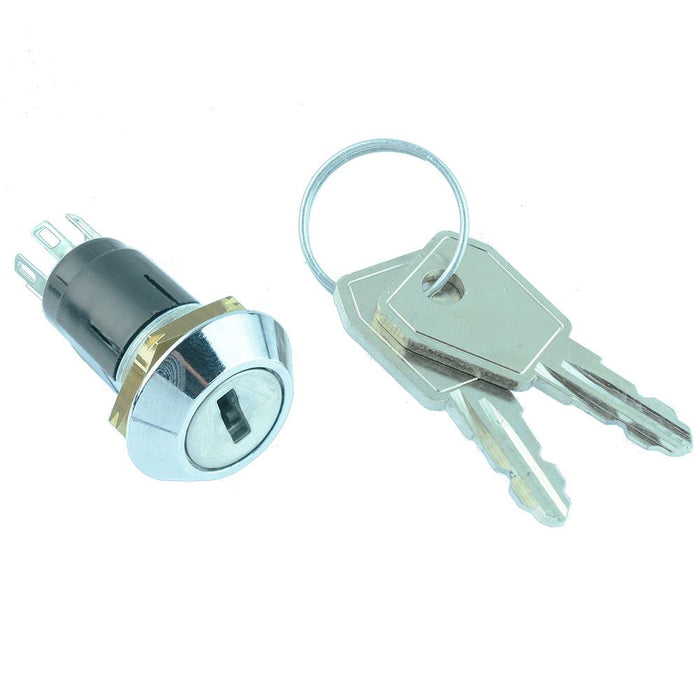

SRL-5-E-D-2 manufactured by Lorlin is a key lock switch featuring SPDT contacts and different keys suitable for a wide range of electrical applications.
On-On operation SPDT contacts Different keys Key withdrawal position: 1 Panel cut-out: 13 x 16mm Rating: 1A 125Vac Key travel: 90dg Chrome plated zinc alloy housing
Specification
| Actuation | Latching |
| Back Order Lead Time | 90 Days |
| Contact Configuration | SPDT |
| Contact Rating | 1A 115Vac |
| Current Rating | 1A |
| Material | Chrome Plated Zinc Alloy |
| Mounting Style | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +65°C |
| Panel Cut Out | 13 x 16mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 115VAC |
