SPDT Reed Switch 0.3A 60VDC

SKU 482567

MPN: 482567

Availability:
231 in stock
Original price £0
Original price £0.89 - Original price £0.89
Original price
Current price £0.89(inc. VAT)
£0.89 - £0.89
Current price £0.89
 More payment options
Quantity Discounts
Buy 25 - 99Get 13% off£0.77(inc. VAT) each
Buy 100 - 249Get 21% off£0.70(inc. VAT) each
Buy 250 - 499Get 28% off£0.64(inc. VAT) each
Buy 500+Get 33% off£0.60(inc. VAT) each

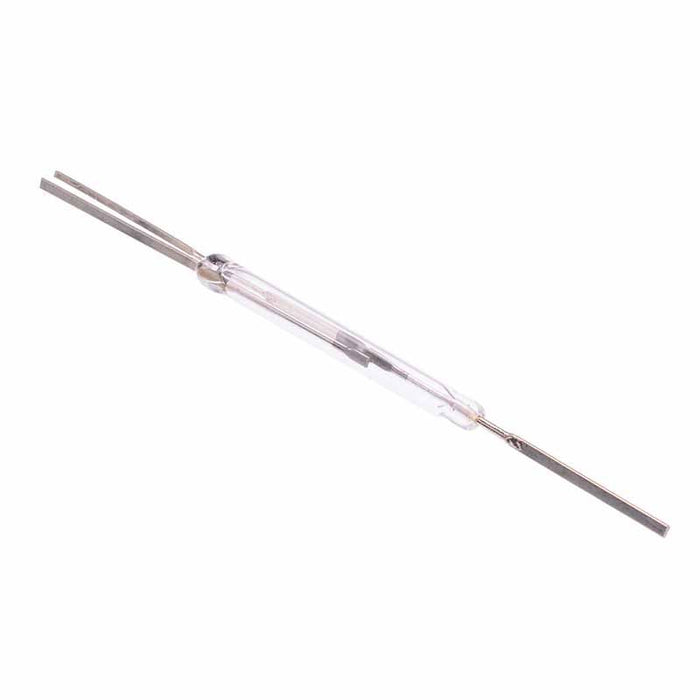

Reed switch featuring 0.3A maximum switching current and SPDT contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.

  • Contacts: SPDT
  • Dimensions: 4 x 36mm (diameter x length)
  • Maximum switching voltage: 60VDC
  • Maximum switching current: 0.3A
  • Pull-In value: 45-65AT
  • Specification
    Back Order Lead Time 120 Days
    Bounce Time 1ms
    Carry Current 1A
    Contact Configuration SPDT
    Diameter 4mm
    Drop Out Sensitivity 12AT Min
    Length 36mm
    Material Rhodium
    Maximum Switching Current 0.3A
    Maximum Switching Voltage 60VDC
    Operating Temperature -10°C to +70°C
    Pull In Sensitivity 45-65AT
    Release Time 0.5ms
