Small SMD Grade 2 NO Armoured Proximity Switch and Magnet Set 500mA 50V - CEA203, S2023BM
by Comus
SKU 552639
MPN: S2023BM
Availability:
11 in stock
Original price
£14.45
-
Original price
£14.45
Original price
£14.45
£14.45
-
£14.45
Current price
£14.45

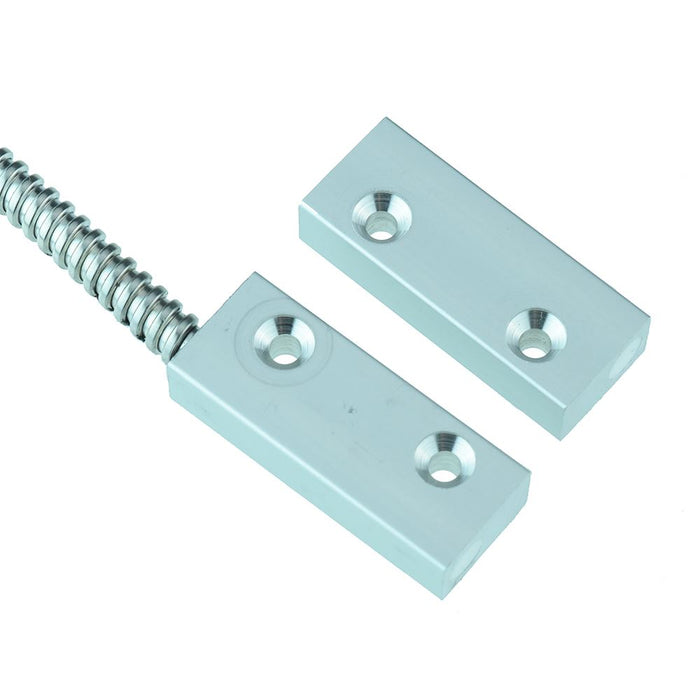

The CEA205 is a flush mounting proximity reed switch and magnet set, featuring normally open contacts and aluminium housing. The switch is suitable for applications including alarm systems, appliance switching, production automation and safety door guards.
Security grade 2 to BS EN 50131-1
Normally open contacts
1000mm cable with 500mm armouring
Supervisory loop
Operating distance: 15mm
Maximum switching voltage: 50V AC/DC
Maximum switching current: 0.5A
Maximum switching capacity: 10W/VA
Aluminium housing
Specification
| Back Order Lead Time | 180 Days |
| Carry Current | 0.8A |
| Contact Configuration | SPST-NO |
| Material | Aluminium |
| Maximum Switching Capacity | 10W/VA |
| Maximum Switching Current | 0.5A |
| Maximum Switching Voltage | 50VAC/DC |
| Operating Temperature | -40°C to +85°C |
