SKL-12-A-D-2 Off-On Keylock Key Switch SPST 500mA 12V
by Lorlin
SKU 481497
MPN: SKL-12-A-D-2
Availability:
39 in stock
Original price
£5.40
-
Original price
£5.40
Original price
£5.40
£5.40
-
£5.40
Current price
£5.40

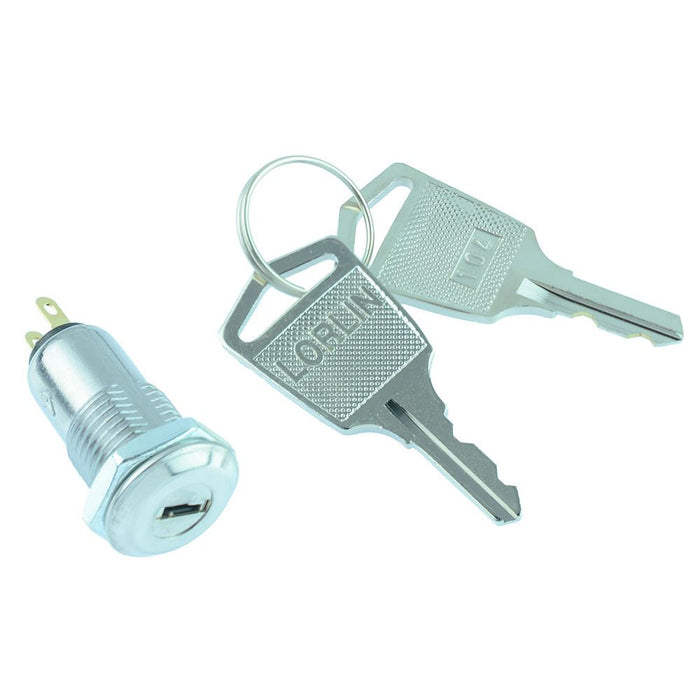

SKL-12-A-D-2 manufactured by Lorlin is a key lock switch featuring SPST contacts and different keys suitable for a wide range of electrical applications.
Off-On operation
SPST contacts
Different keys
'A' & 'B' position key withdrawal
Panel cut-out: 12mm
Rating: 0.5A 24Vac/dc
Key travel: 90dg
Stainless steel capped bezel
Chrome plated zinc alloy housing
Specification
| Actuation | Latching |
| Back Order Lead Time | 90 Days |
| Contact Configuration | SPST |
| Contact Rating | 0.5A 24V |
| Current Rating | 0.5A |
| Material | Zinc Alloy |
| Mounting Style | Panel Mount |
| Number of Positions | 2 |
| Panel Cut Out | 12mm |
| Switch Operation | Off-On |
| Terminal Type | Solder |
| Voltage Rating | 24VAC/DC |
