RI-27 SPST-NO Reed Switch High Medium Low Kit
by Comus
SKU 552503
MPN: RI-27K
Availability:
Only 4 left!
Original price
£2.15
-
Original price
£2.15
Original price
£2.15
£2.15
-
£2.15
Current price
£2.15

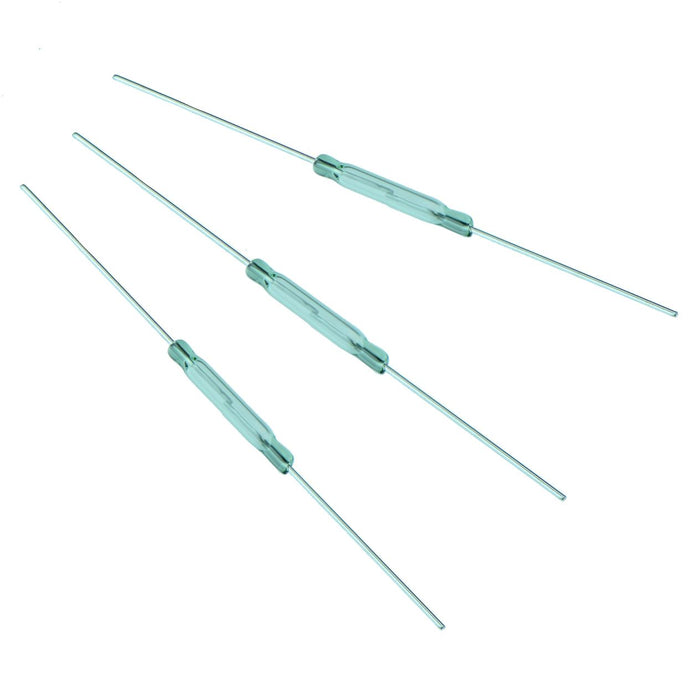

The RI-27 kit provides a selection of sensitivity levels from the series allowing you to test which is the best for your application. The switches are hermetically sealed in a gas filled glass housing, featuring normally open contacts, actuated using an electro-magnet.
Includes qty 1 of each sensitivity high, medium, low
Ideal for ATE switching
Contact layers: ruthenium on gold
Superior glass-to-metal seal and blade alignment
Excellent life expectancy and reliability
Operating range: 10-20, 15-25, 20-34AT
Specification
| Back Order Lead Time | 180 Days |
| Bounce Time | 0.05ms |
| Contact Configuration | SPST-NO |
| Diameter | 1.8mm |
| Length | 13.5mm |
| Material | Rhodium |
| Maximum Switching Capacity | 10W |
| Maximum Switching Current | 0.5A |
| Operating Temperature | -55°C to +125°C |
| Pull In Sensitivity | 10-20, 15-25, 20-34AT |
| Release Time | 30µs |
