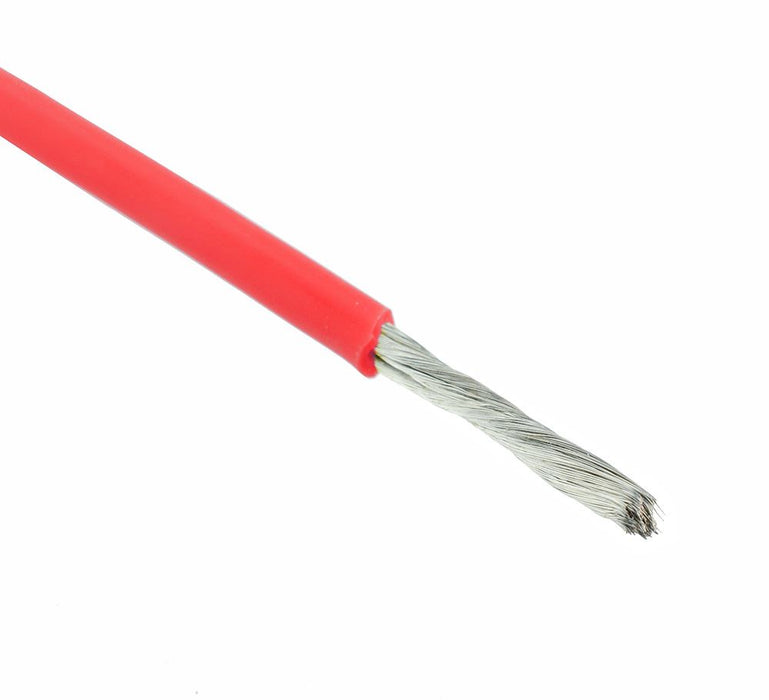

Red Silicone Lead Wire 16AWG 252/0.08mm (price per metre)
SKU 403010
MPN: 403010
Availability:
241 in stock
Original price
£1.12
-
Original price
£1.12
Original price
£1.12
£1.12
-
£1.12
Current price
£1.12
Silicone insulated wire with a copper conductor suitable for a wide range of applications.
Wide temperature range Flexible and lightweight Rated voltage: 600V 252/0.08mm copper stranding Cut to length in pieces up to 25 metres
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Conductor Cross Section | 1.27mm² |
| Conductor Diameter | 1.53mm |
| Conductor Material | Tinned Copper |
| Conductor Stranding | 252/0.08mm |
| Current Rating | 35A |
| Insulation Material | Silicone |
| Insulation Thickness | 0.8mm |
| Operating Temperature | -60°C to 200°C |
| Overall Diameter | 3.0mm |
| Voltage Rating | 600V |
| Wire Gauge | 16AWG |
