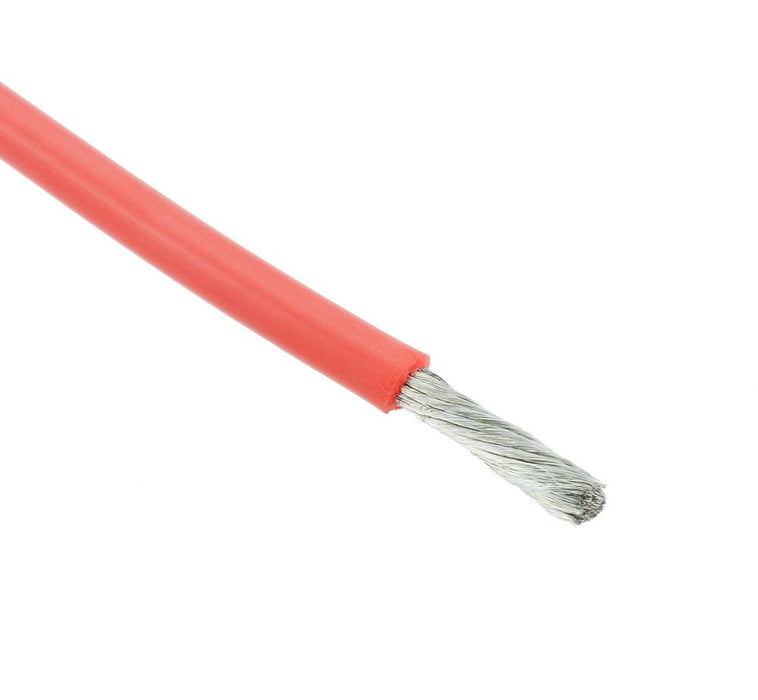

Red Silicone Lead Wire 12AWG 680/0.08mm (price per metre)
SKU 403004
MPN: 403004
Availability:
357 in stock
Original price
£2.58
-
Original price
£2.58
Original price
£2.58
£2.58
-
£2.58
Current price
£2.58
Silicone insulated wire with a copper conductor suitable for a wide range of applications.
Wide temperature range Flexible and lightweight Rated voltage: 600V 680/0.08mm copper stranding Cut to length in pieces up to 25 metres
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Conductor Cross Section | 3.4mm² |
| Conductor Diameter | 2.48mm |
| Conductor Material | Tinned Copper |
| Conductor Stranding | 680/0.08mm |
| Current Rating | 88.5A |
| Insulation Material | Silicone |
| Insulation Thickness | 1.00mm |
| Operating Temperature | -60°C to 200°C |
| Overall Diameter | 4.5mm |
| Voltage Rating | 600V |
| Wire Gauge | 12AWG |
