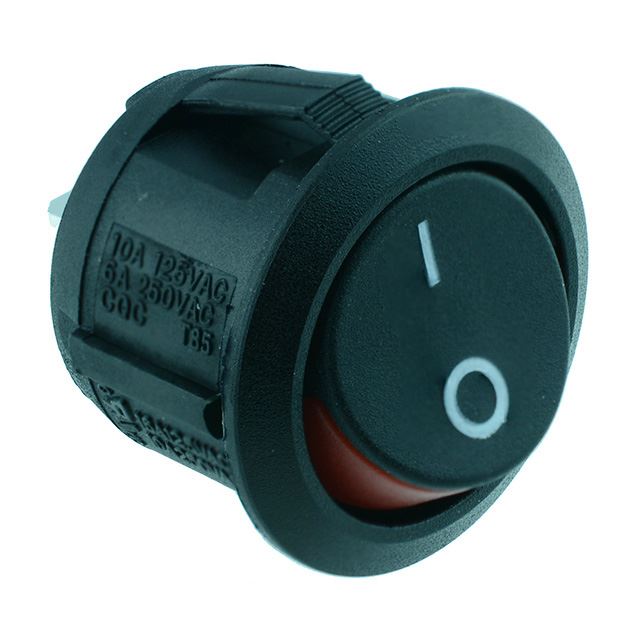

Red Round 'Visi On' Rocker Switch SPST R13-112A2-02
by SCI
SKU 480898
MPN: R13-112A-02 Red
Availability:
819 in stock
Original price
£0.94
-
Original price
£0.94
Original price
£0.94
£0.94
-
£0.94
Current price
£0.94
Circular rocker switch with SPST contacts and blue bi-colour actuator suitable for a range of applications.
SPST contacts On-Off action Snap-in mounting 4.8mm silver plated brass contacts Panel cut-out: 20.2mm 3mm maximum panel thickness Maximum current: 10A Maximum voltage: 250VAC SCI R13 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 10A 250VAC |
| Current Rating | 10A |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 20.2mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
