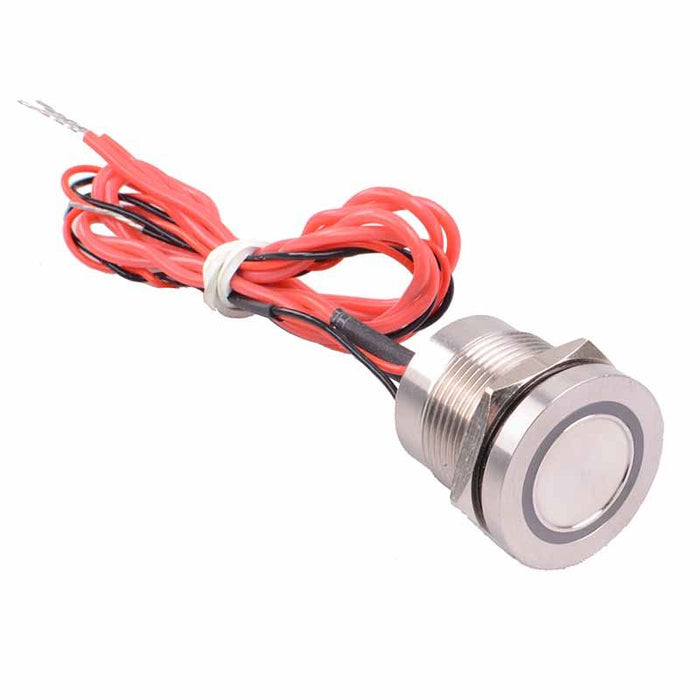

Red Ring LED On-Off 19mm Metal Latching Piezo Switch SPST

by Langir
SKU 482234

MPN: PZ-19BR2FN1NOLR

Availability:
42 in stock
Original price £22.17 - Original price £22.17
Original price
£22.17
£22.17 - £22.17
Current price £22.17
Red LED latching piezo switch featuring a sealed and vandal proof design providing solid state switching. The switch has a life expectancy of over 50 million cycles and is ideal for demanding applications where reliability is critical.

  • NO latching function
  • Red LED 12VDC illumination
  • 19mm panel cut-out diameter
  • 3mm height flat operator
  • 22mm diameter head
  • Flying leads
  • Rating: 200mA 24VAC/DC
  • Specification
    Actuation Latching
    Back Order Lead Time 45 Days
    Colour Red
    Contact Configuration SPST
    Contact Rating 0.2A 24V
    Current Rating 0.2A
    Electrical Life 50,000,000+ Cycles
    Illuminated Yes
    Illumination Colour Red
    Illumination Voltage 12VDC
    Material Aluminium
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +75°C
    Panel Cut Out 19mm
    Protection Level IP68
    Switch Operation On-Off
    Terminal Type Flying Leads
    Voltage Rating 24VDC
