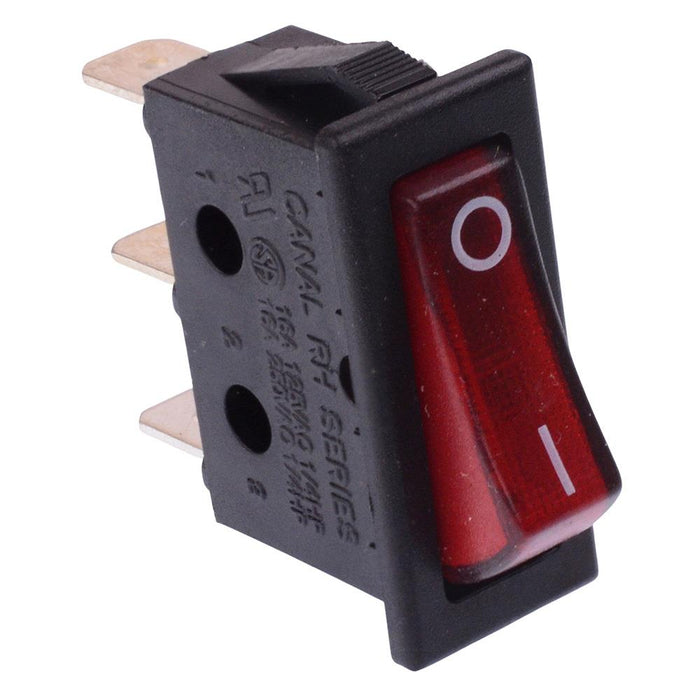

Red On-Off 110V illuminated Rocker Switch SPST 16A
by Canal
SKU 487466
MPN: RH110C5LBR
Availability:
Only 1 left!
Original price
£0.76
-
Original price
£0.76
Original price
£0.76
£0.76
-
£0.76
Current price
£0.76
Red On-Off rocker switch featuring neon illumination and SPST contacts. The switch features a 16A 250VAC rating and quick connect terminals, suitable for a wide range of applications.
SPST contacts On-Off function Red neon 100-125VAC illumination Rating: 16A 250VAC Panel cut-out: 11 x 30mm 6.35mm quick connect terminals
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Material | Silver Alloy |
| Contact Rating | 16A 250VAC |
| Current Rating | 16A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 100-125VAC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 30 x 11mm |
| Panel Thickness | 0.75-3mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
