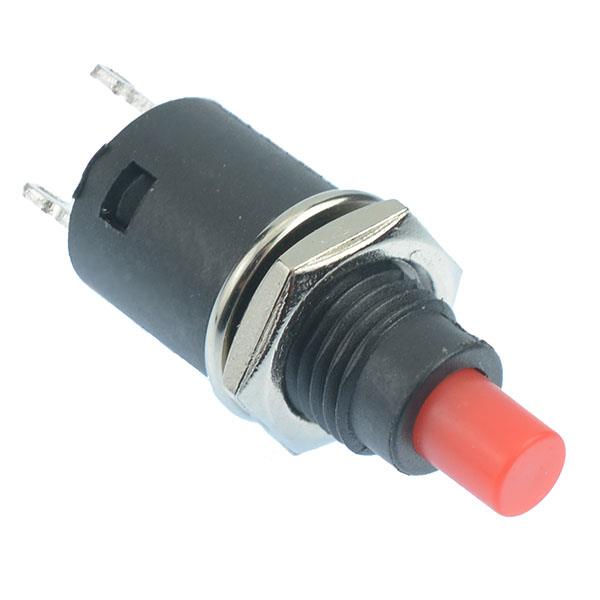

Red Off-(On) Miniature Momentary 7mm Push Button Switch SPST
SKU 482250
MPN: 482250
Availability:
805 in stock
Original price
£0.42
-
Original price
£0.42
Original price
£0.42
£0.42
-
£0.42
Current price
£0.42
Miniature momentary push button switch featuring a red button and compact design suitable for low power applications.
Off-(On) momentary operation 7.2mm panel cut-out Rating: 3A 125VAC, 1.5A 250VAC Solder lug terminals Dimensions: 27.7 x 9mm (Height x Diameter)
Specification
Actuation | Momentary |
Back Order Lead Time | 45 Days |
Colour | Red |
Contact Configuration | SPST |
Contact Rating | 1.5A 250VAC |
Current Rating | 1.5A |
Electrical Life | 10,000 Cycles |
Illuminated | No |
Illumination Colour | Non Illuminated |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | -25°C to +85°C |
Panel Cut Out | 7.2mm |
Switch Operation | Off-(On) |
Terminal Type | Solder |
Voltage Rating | 250VAC |
