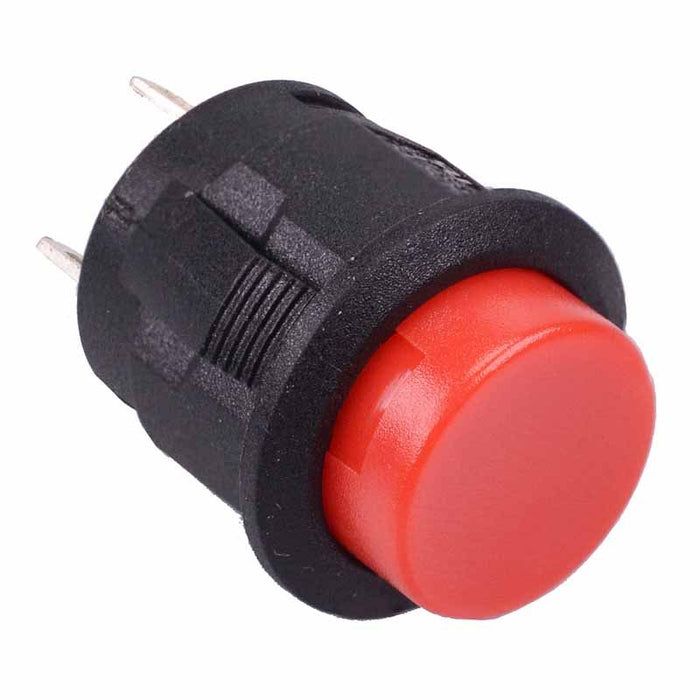

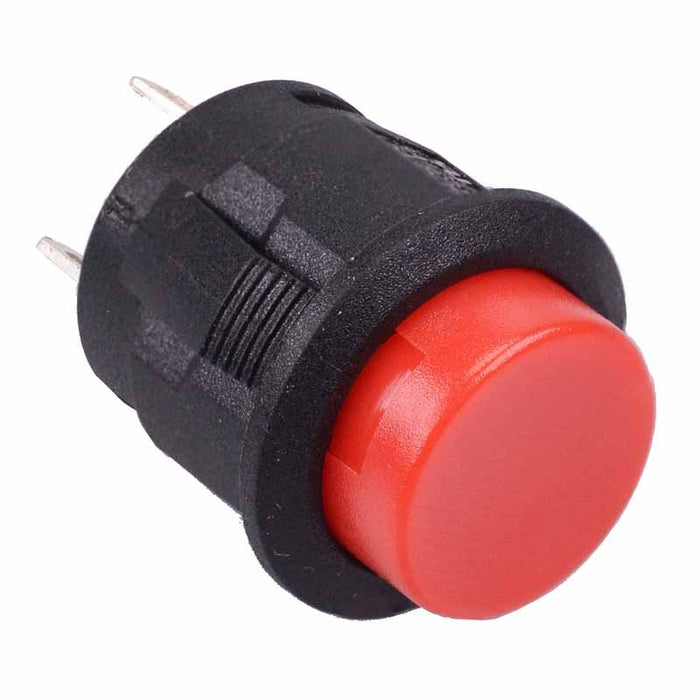

Red Off-(On) 15mm Push Button Momentary Switch SPST R13-523A
by SCI
SKU 482614
MPN: R13-523A-05 Red
Availability:
500 in stock
Original price
£1.58
-
Original price
£1.58
Original price
£1.58
£1.58
-
£1.58
Current price
£1.58
Red push fit panel mount momentary push button switch featuring SPST normally open contacts and solder terminals. The switch 3A current rating making them suitable for low power applications.
SPST-NO contacts
Off-(On) operation
Panel cut-out: 15mm
Solder terminals
Rating: 1.5A 250VAC, 3A 125VAC
Dimensions: 25 x 19mm (Length x Diameter)
12.8mm button diameter
SCI R13-523A series
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 3A 125VAC, 1.5A 250VAC |
| Current Rating | 3A @ 125VAC |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Panel Cut Out | 15mm |
| Panel Thickness | 0.75-3.0mm |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
