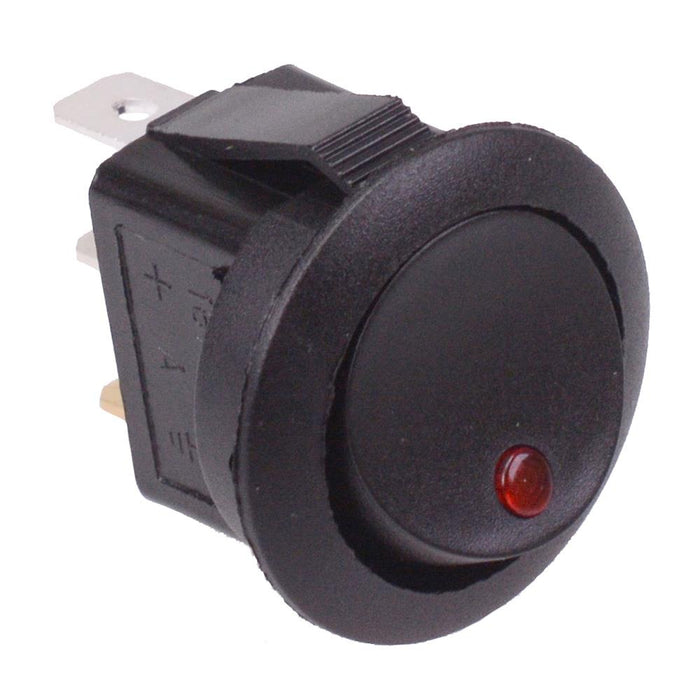

Red LED Round Rocker Switch 12V SPST
SKU 551653
MPN: 551653
Availability:
Out of stock
Sold out
Original price
£0.90
-
Original price
£0.90
Original price
£0.90
£0.90
-
£0.90
Current price
£0.90
Circular rocker switch featuring a red LED suitable for 12V applications. The switch features quick connect terminals and snap-in mounting making the switch easy to install.
Red LED
On-Off operation
SPST contacts
4.8mm terminals
Rating: 16A 12VDC
20mm panel cut-out
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 16A 12VDC |
| Current Rating | 16A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -10°C to +85°C |
| Panel Cut Out | 20mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
