Red Off-(On) Black Momentary Vandal Resistant Push Button Switch 2A SPST
by Langir
SKU 485889
MPN: V12BP1A-R
Availability:
34 in stock
Original price
£2.88
-
Original price
£2.88
Original price
£2.88
£2.88
-
£2.88
Current price
£2.88

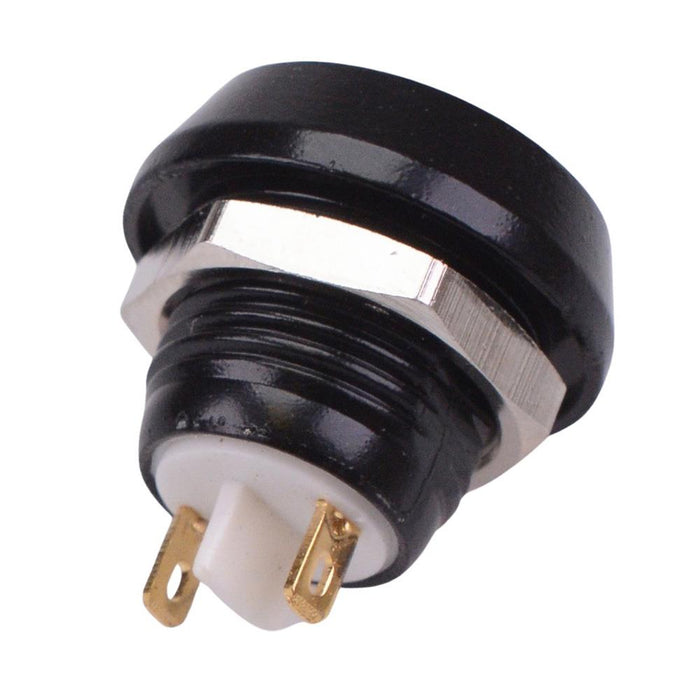

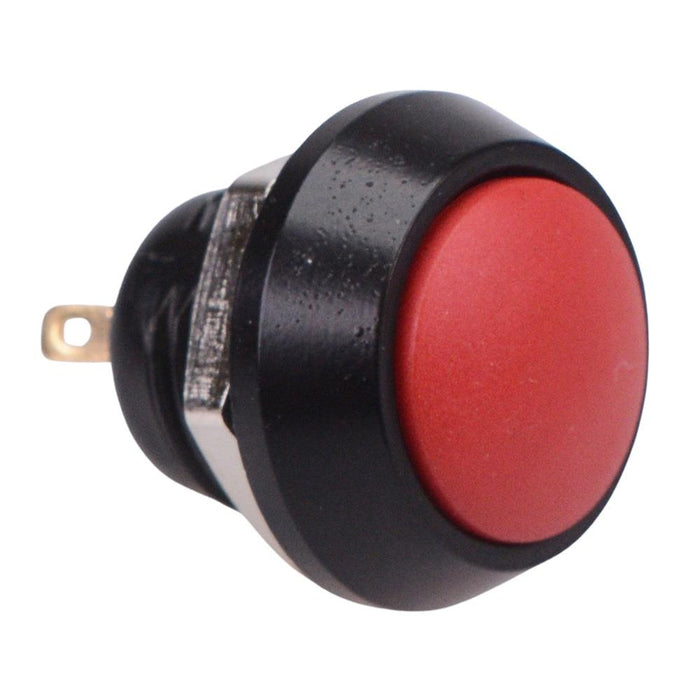

Red vandal resistant push button switch featuring a round actuator and robust zinc alloy body. The switch features an IP65 sealed construction and normally open SPST contacts suitable for a wide variety of applications.
Momentary Off-(On) action SPST contacts Zinc alloy body material 12mm panel cut-out 2A 48VDC rating Solder terminals 1,000,000 mechanical cycles Dimensions: 19.3 x 17.5mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 2A 48VDC |
| Current Rating | 2A |
| Electrical Life | 200,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Zinc Alloy |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 5N |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 6mm Max |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 48VDC |
