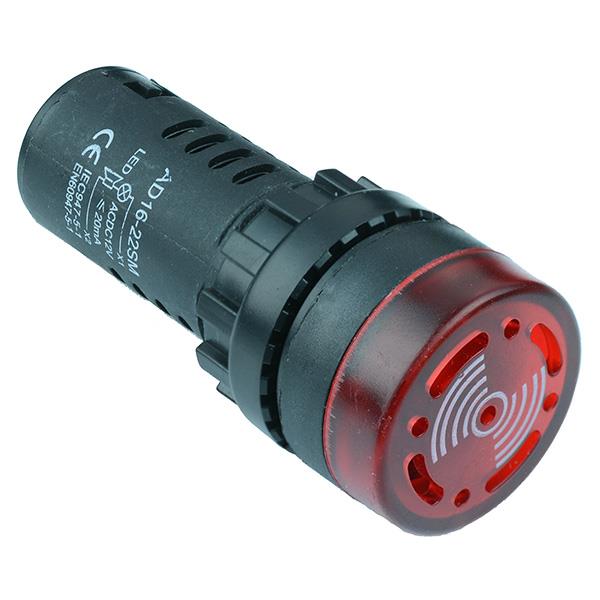

Red 22mm Buzzer Panel Indicator 12V
SKU 482513
MPN: 482513
Availability:
Out of stock
Sold out
Original price
£2.15
-
Original price
£2.15
Original price
£2.15
£2.15
-
£2.15
Current price
£2.15
General purpose indicator with buzzer suitable for 12V panel mounting applications.
Colour: Red Panel cut-out: 22mm Lens diameter: 28.5mm Includes locking nut IP65 protection rating Long lifespan Dimensions: 51 x 28.9mm (Height x Diameter)
Specification
| Back Order Lead Time | 40 Days |
| Colour | Red |
| Diameter | 30mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 62mm |
| Life Expectancy | 30,000 Hours |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 22mm |
| Panel Thickness | 6mm |
| Protection Level | IP40 |
| Voltage Rating | 12VDC |
