Red 12V LED 12.5mm Panel Indicator Light
SKU 486702
MPN: WL02 12V Red
Availability:
172 in stock
Original price
£0.95
-
Original price
£0.95
Original price
£0.95
Inc VAT
£0.95
-
£0.95
Current price
£0.95
Inc VAT

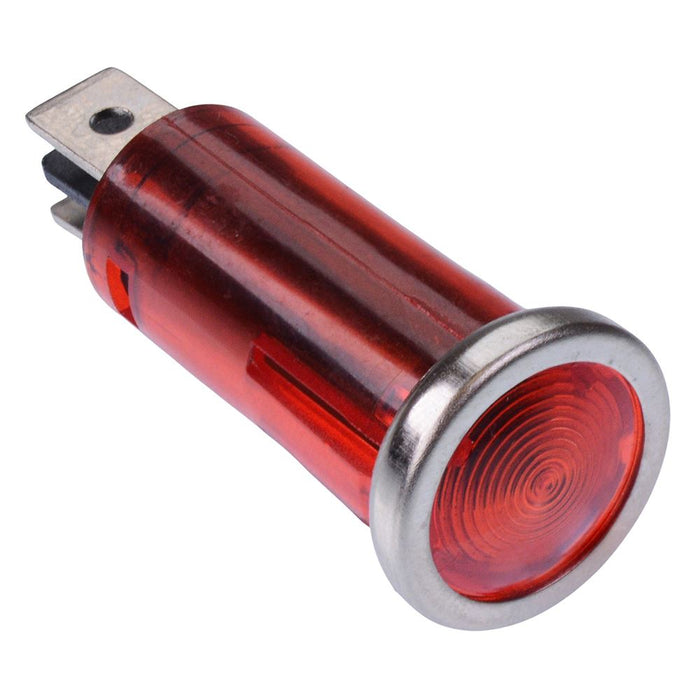

Red plastic panel indicator light featuring a red LED suitable for use with 12V input voltage. The indicator features a 15mA rated current, making it suitable for a wide range of automotive applications.
Red LED 12V input voltage 15mA rated current 6.35mm quick connect terminals Panel cut-out: 12.5mm Life expectancy: 10,000 hours Dimensions: 40.1mm x 16.5mm (length x diameter)
Specification
| back order lead time | 40 Days |
| colour | Red |
| diameter | 16.5mm |
| forward current | 15mA |
| lamp type | Neon |
| length | 40.1mm |
| life expectancy | 10,000 Hours |
| mouting type | Panel Mount |
| operating temperature | -25°C to +55°C |
| panel cut out | 12.5mm |
| voltage rating | 12VDC |
