Rectangular Reed Switch Side Sensing NO 0.5A 140V - SRA-SP-004, S1980
by Comus
SKU 552624
MPN: S1980
Availability:
9 in stock
Original price
£13.00
-
Original price
£13.00
Original price
£13.00
£13.00
-
£13.00
Current price
£13.00

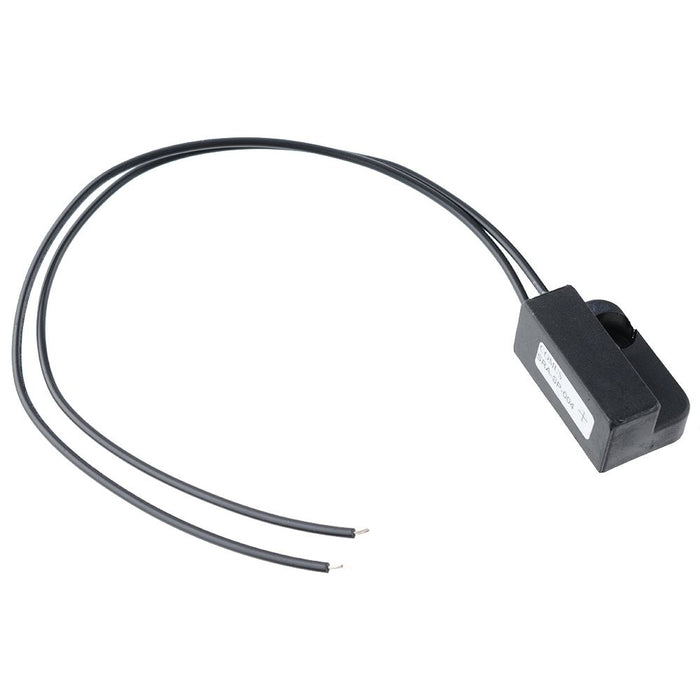

The SRA-SP-004 is a compact rectangular reed switch featuring normally open contacts that closes in the presence of ferrous metal. Suitable for applications including gate closed detection, robotics sensing, automated production lines and safety guards.
Normally open contacts Top or side sensing directions Activation distance: 6mm Maximum switching voltage: 140VAC / 200VDC Maximum switching current: 0.5A Maximum switching capacity: 10W 2 x 20AWG Black cable
Specification
| Back Order Lead Time | 180 Days |
| Carry Current | 2.75A |
| Contact Configuration | SPST-NO |
| Material | ABS |
| Maximum Switching Capacity | 10W |
| Maximum Switching Current | 0.5A |
| Maximum Switching Voltage | 140VAC, 200VDC |
| Operating Temperature | -40°C to +85°C |
