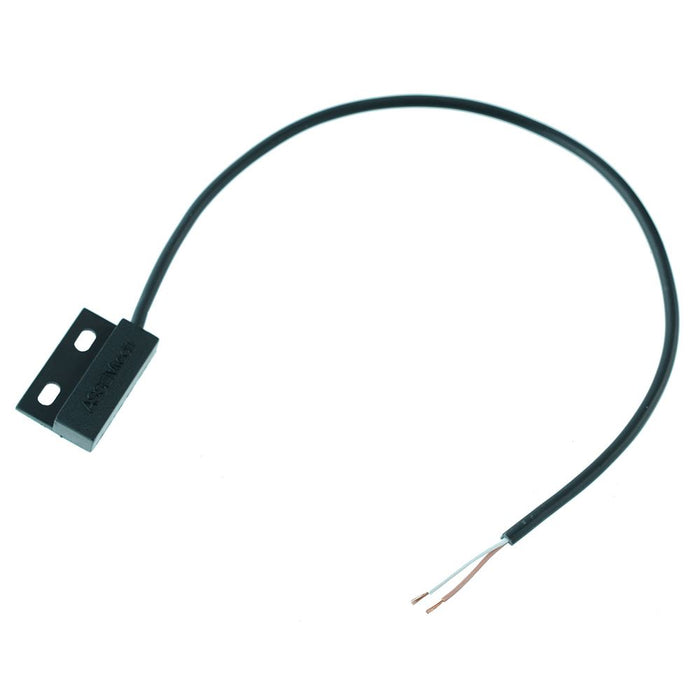

Rectangular Flange Mount Reed Switch SPST-NO 250mA 100V - S1365
by Comus
SKU 552574
MPN: S1365
Availability:
26 in stock
Original price
£4.08
-
Original price
£4.08
Original price
£4.08
£4.08
-
£4.08
Current price
£4.08
The S1365 is a rectangular reed switch featuring normally open contacts and a polypropylene case. Suitable for sensing and industrial applications.
Suggested magnet: PSM Normally open contacts Slots for alignment adjustments Maximum switching voltage: 100VAC Maximum switching current: 0.25A Maximum switching capacity: 5VA Switching distance: 8mm Min 2 x round 0.14mm² PVC covered and insulated wire
Specification
| Back Order Lead Time | 180 Days |
| Contact Configuration | SPST-NO |
| Material | Black Polypropylene |
| Maximum Switching Capacity | 5VA |
| Maximum Switching Current | 0.25A |
| Maximum Switching Voltage | 100VAC |
| Operating Temperature | -20°C to +70°C |
