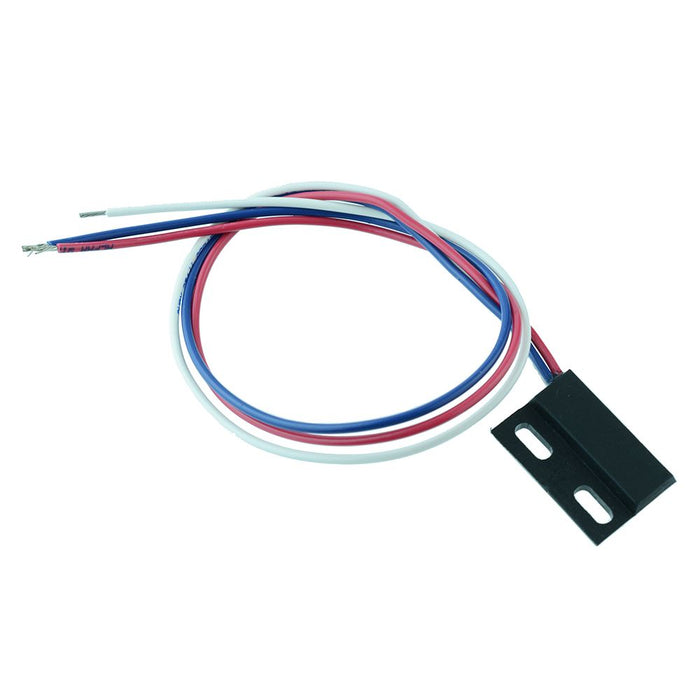

Rectangular Changeover Reed Switch 400mA 175V - PRC-SP-039, S1833L
by Comus
SKU 552616
MPN: S1833L
Availability:
49 in stock
Original price
£3.00
-
Original price
£3.00
Original price
£3.00
£3.00
-
£3.00
Current price
£3.00
The PRC-SP-039 is a rectangular reed switch manufactured from glass filled nylon, featuring changeover contacts. The switch is suitable for applications including position and limit sensing, linear actuators, security system switch and door switch.
Changeover contacts
Glass filled nylon case
Maximum switching voltage: 175VDC, 125VAC
Maximum switching current: 0.4A DC, 0.28A AC
Maximum switching capacity: 5W/VA
Switching distance: 8mm minimum
Specification
| Back Order Lead Time | 180 Days |
| Carry Current | 0.5A |
| Contact Configuration | SPDT |
| Maximum Switching Capacity | 5W/VA |
| Maximum Switching Current | 0.4A DC, 0.28A AC |
| Maximum Switching Voltage | 175VDC, 125VAC |
| Operating Temperature | -40°C to +105°C |
