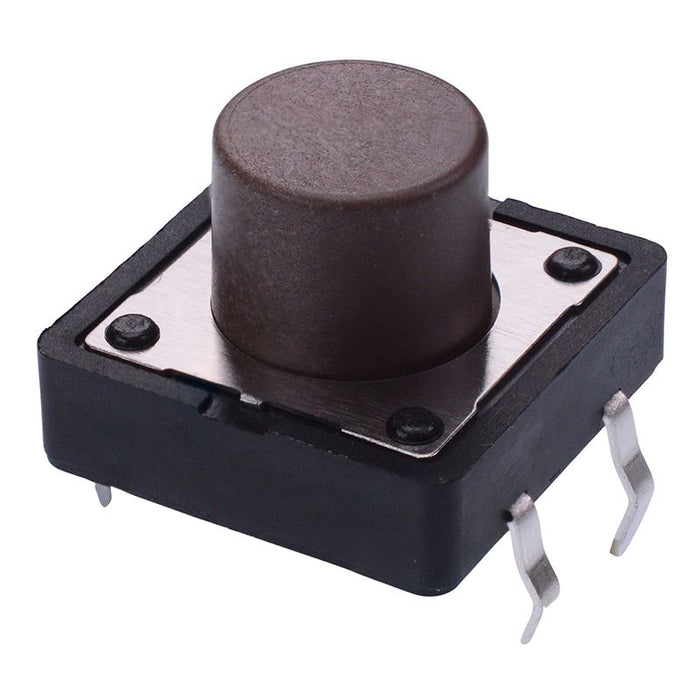

PHAP5-50VA2Q2T2N2 8.5mm Height 12mm x 12mm Through Hole Tactile Switch 160g APEM
by APEM
SKU 486192
MPN: PHAP5-50VA2Q2T2N2
Availability:
409 in stock
Original price
£0.31
-
Original price
£0.31
Original price
£0.31
£0.31
-
£0.31
Current price
£0.31
The PHAP5-50VA2Q2T2N2 is a vertical tactile switch with a 12mm x 12mm standard package and 8.5mm height. The switch provides a positive tactile feedback and is supplied in bulk packaging, suitable for through hole mounting.
Vertical through hole mounting
12mm x 12mm package
8.5mm height
Rating: 50mA 12VDC
Operating force: 160g
Travel: 0.35mm
APEM PHAP5-50 series
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Material | Silver Plated Phosphor Bronze |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Height | 8.5mm |
| Material | Nylon |
| MOQ | 5 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 160g |
| Operating Temperature | -25°C to +70°C |
| Product Series | PHAP5-50 |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 12VDC |
