PHAP5-50VA2K2S2N3 7.3mm Height Square 12mm x 12mm Surface Mount Tactile Switch 160g Tube Packaging APEM
by APEM
SKU 486185
MPN: PHAP5-50VA2K2S2N3
Availability:
292 in stock
Original price
£0.32
-
Original price
£0.32
Original price
£0.32
£0.32
-
£0.32
Current price
£0.32

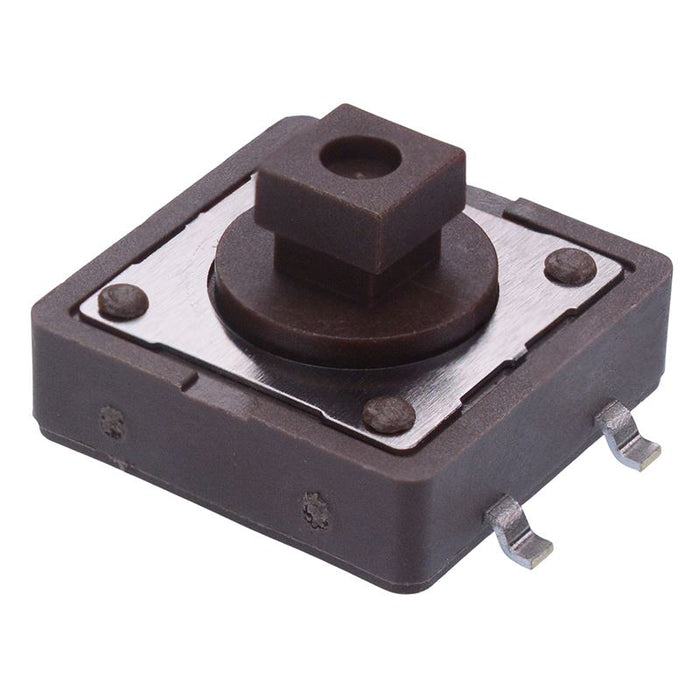

The PHAP5-50VA2K2S2N3 is a vertical tactile switch with a 12mm x 12mm standard package and 7.3mm height. The switch provides a positive tactile feedback and is supplied in tube packaging, suitable for SMT mounting.
Vertical SMT mounting 12mm x 12mm package 7.3mm height 3.8 x 3.8mm square actuator Rating: 50mA 12VDC Operating force: 160g Travel: 0.35mm APEM PHAP5-50 series
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Material | Silver Plated Phosphor Bronze |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Height | 7.3mm |
| Material | Nylon |
| MOQ | 5 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 160g |
| Operating Temperature | -25°C to +70°C |
| Product Series | PHAP5-50 |
| Switch Operation | Off-(On) |
| Terminal Type | Surface Mount |
| Voltage Rating | 12VDC |
