PBARZAF3000G0G APEM Green LED 12V Momentary NO 22mm Piezo Switch Prewired IP68
by APEM
SKU 490144
MPN: PBARZAF3000G0G
Availability:
19 in stock
Original price
£37.38
-
Original price
£37.38
Original price
£37.38
£37.38
-
£37.38
Current price
£37.38

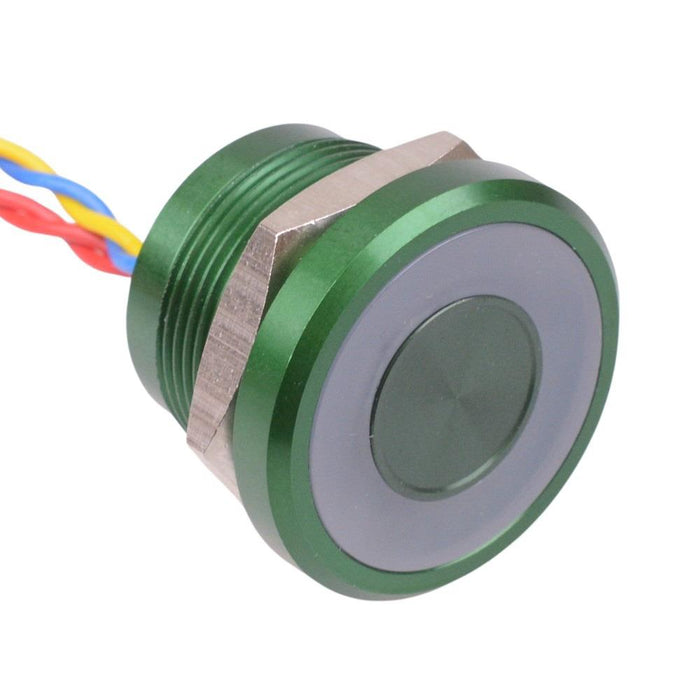

The PBARZAF3000G0G is an illuminated 22.2mm momentary piezo switch manufactured by APEM. The switch features a green anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: green anodized LED colour: green illumination: large ring, 12VDC Panel cut-out: 22.2mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 200mA 24VAC/DC Terminals: flying leads Bushing: flat operator, 4.5mm height Diameter: 28mm
Specification
| Actuation | Momentary |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Rating | 0.2A 24VAC/DC |
| Current Rating | 0.2A |
| Electrical Life | 50,000,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 12VDC |
| Material | Anodized |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 22.2mm |
| Product Series | PBA |
| Protection Level | IP68 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 24VAC/DC |
