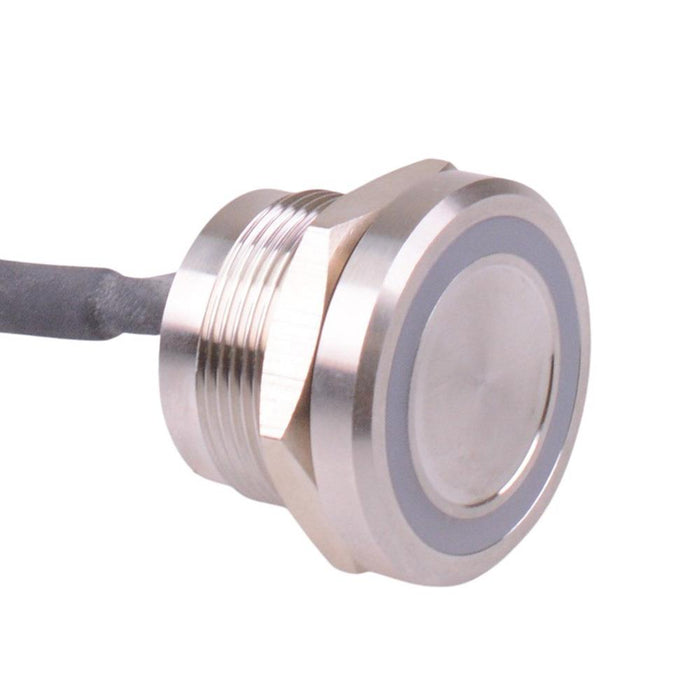

PBARZACB000E0W APEM White LED 24V Stainless Steel Momentary NO 22mm Piezo Switch Prewired IP68
by APEM
SKU 490142
MPN: PBARZACB000E0W
Availability:
10 in stock
Original price
£56.56
-
Original price
£56.56
Original price
£56.56
£56.56
-
£56.56
Current price
£56.56
The PBARZACB000E0W is an illuminated 22.2mm momentary piezo switch manufactured by APEM. The switch features a stainless steel body and is terminated with cable. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: stainless steel 316L LED colour: white illumination: thin ring, 24VDC Panel cut-out: 22.2mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 200mA 24VAC/DC Terminals: cable Bushing: flat operator, 4.5mm height Diameter: 28mm
Specification
| Actuation | Momentary |
| Colour | White |
| Contact Configuration | SPST |
| Contact Rating | 0.2A 24VAC/DC |
| Current Rating | 0.2A |
| Electrical Life | 50,000,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | White |
| Illumination Voltage | 24VDC |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 22.2mm |
| Product Series | PBA |
| Protection Level | IP68 |
| Switch Operation | Off-(On) |
| Terminal Type | Cable |
| Voltage Rating | 24VAC/DC |
