PBAR1AF1000A0B APEM Blue illuminated 5VDC Momentary NO 16mm Piezo Switch Prewired IP68
by APEM
SKU 488015
MPN: PBAR1AF1000A0B
Availability:
Only 4 left!
Original price
£30.30
-
Original price
£30.30
Original price
£30.30
£30.30
-
£30.30
Current price
£30.30

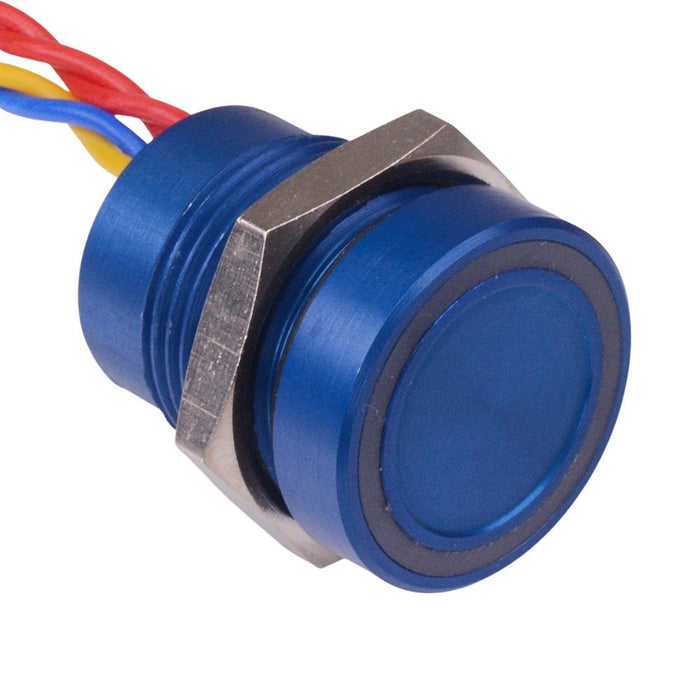

The PBAR1AF1000A0B is an illuminated 16mm momentary piezo switch manufactured by APEM. The switch features a blue anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.
Body material: blue anodized Body colour: blue LED colour: blue illumination: ring, 5VDC Panel cut-out: 16mm Contacts: SPST-NO Protection rating: IP68, IP69K mounted on panel Rating: 200mA 24VAC/DC Terminals: flying leads Bushing: flat operator, 4.5mm height Diameter: 18mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Rating | 0.2A 24VAC/DC |
| Current Rating | 0.2A |
| Electrical Life | 50,000,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 5VDC |
| Material | Anodized |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +75°C |
| Panel Cut Out | 16mm |
| Product Series | PBA |
| Protection Level | IP68 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 24VAC/DC |
