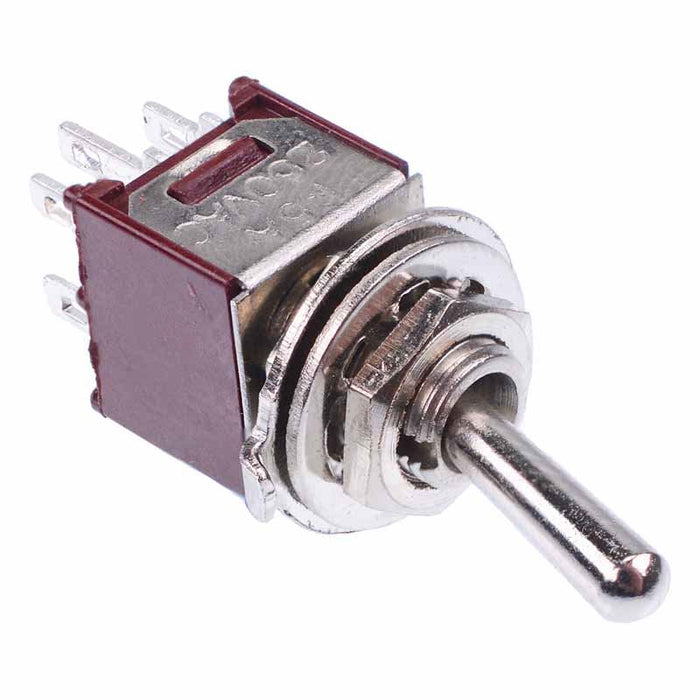

On-On Subminiature Toggle Switch DPDT
SKU 482843
MPN: 482843
Availability:
301 in stock
Original price
£0.89
-
Original price
£0.89
Original price
£0.89
£0.89
-
£0.89
Current price
£0.89
Sub-miniature On-On toggle switch featuring DPDT contacts and a compact size, suitable for a wide range of applications requiring a 2 pole small packaged switch.
On-On action
DPDT contacts
Solder terminals
Rating: 3A 125VAC, 1.5A 250VAC
Panel cut-out: 5mm
Dimensions: 27.3 x 8.2 x 9.2mm (Height x Width x Length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Contact Configuration | DPDT |
| Contact Rating | 3A 125VAC, 1.5A 250VAC |
| Current Rating | 3A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 5mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
