On-On-On 3 Way 19mm Key Switch DP3T 4A LK6JNB126N3
by APEM
SKU 485819
MPN: LK6JNB126N3
Availability:
23 in stock
Original price
£14.09
-
Original price
£14.09
Original price
£14.09
£14.09
-
£14.09
Current price
£14.09

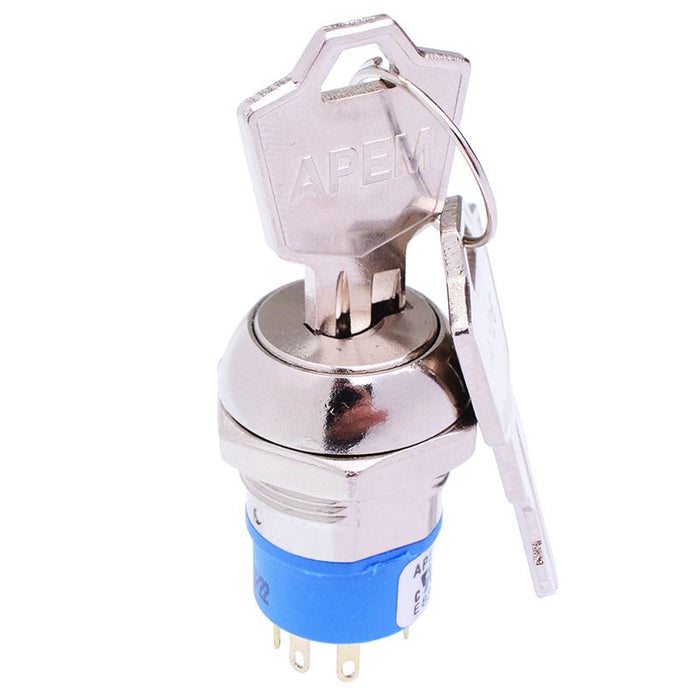

The LK6JNB126N3 is a high quality key operated switch from the LK series manufactured by APEM. The switch features DP3T contacts and 3 maintained positions with key withdrawal in position 1,2,&3. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.
3 positions
Maintained switching
DP3T contacts
Nickel plated finish
Key withdrawal in position 1,2,3
Panel cut-out: 19mm
Indexing: 45°
Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC
Mechanical and electrical life: 6000 cycles at full load
Dimensions: 28.8 x 22mm (length x diameter)
Specification
Actuation | Latching |
Back Order Lead Time | 10 Days |
Colour | Nickel Plated |
Contact Configuration | DP3T |
Contact Material | Gold Plated Copper Alloy |
Contact Rating | 4A 125VAC / 28VDC, 2A 250VAC |
Current Rating | 4A @ 125VAC / 28VDC |
Electrical Life | 6000 Cycles |
Key Index Angle | 45° |
Key Withdrawal Position | 1, 2 & 3 |
Mounting Style | Panel Mount |
Number of Positions | 3 |
Operating Temperature | -30°C to +85°C |
Panel Cut Out | 19mm |
Product Series | LK |
Protection Level | Gold Plated Copper Alloy |
Switch Operation | On-On-On |
Terminal Type | Solder |
Voltage Rating | 250VAC |
