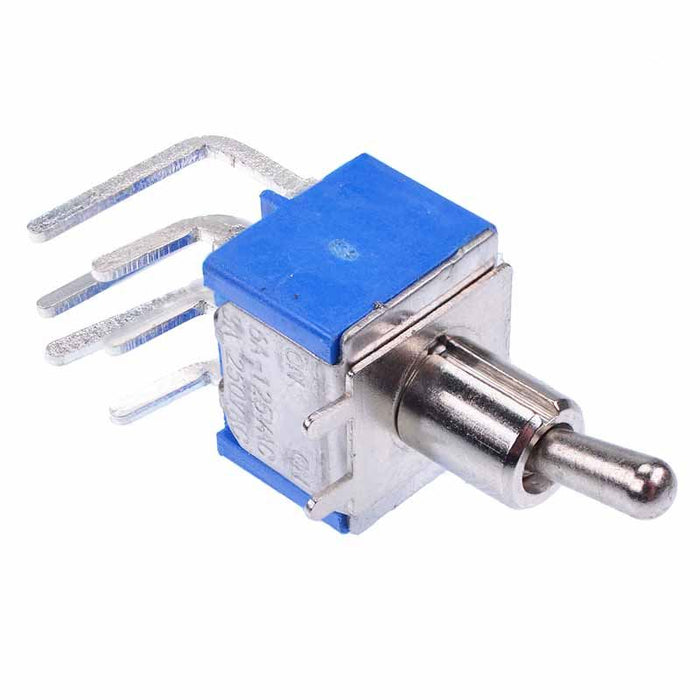

On-On Miniature Horizontal PCB Toggle Switch DPDT
SKU 482848
MPN: 482848
Availability:
241 in stock
Original price
£0.79
-
Original price
£0.79
Original price
£0.79
£0.79
-
£0.79
Current price
£0.79
Mini On-On toggle switch featuring DPDT contacts and a compact size, suitable for mounting horizontally directly to a PCB.
On-On action DPDT contacts Solder PCB terminals Rating: 6A 125VAC, 3A 250VAC Terminal pitch: 4.7mm Dimensions: 27 x 13.2 x 15.9mm (Length x Width x Height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Contact Configuration | DPDT |
| Contact Rating | 6A 125VAC, 3A 250VAC |
| Current Rating | 6A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Pitch | 4.7mm |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 250VAC |
