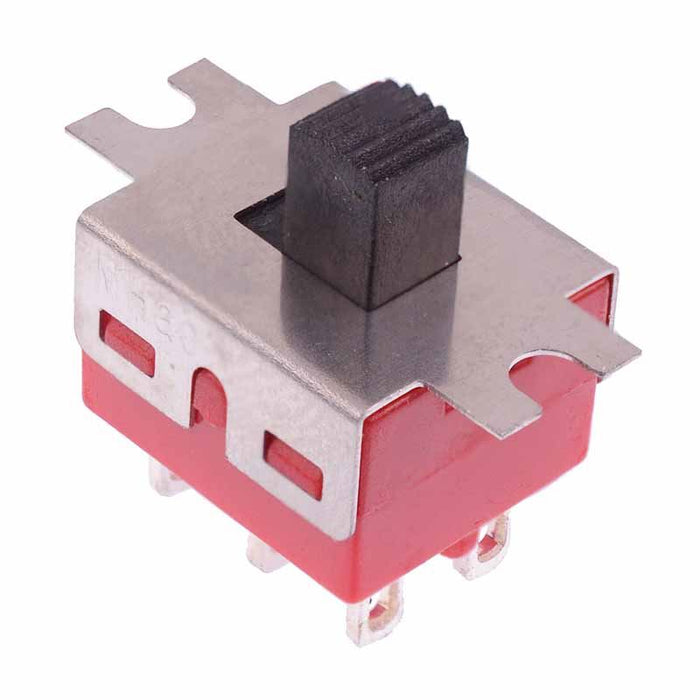

On-On Mini Slide Switch DPDT 5A
SKU 483107
MPN: 483107
Availability:
863 in stock
Original price
£0.97
-
Original price
£0.97
Original price
£0.97
Inc VAT
£0.97
-
£0.97
Current price
£0.97
Inc VAT
On-On miniature slide switch featuring DPDT contacts and solder terminals. The switch features a 5A current rating making them ideal for higher current applications requiring a small packaged switch.
On-On action DPDT contacts Solder terminals 5mm knob height Rating: 2A 250VAC, 5A 125VAC / 28VDC Mounting hole pitch: 17.5mm Dimensions: 19.56 x 11.43 x 16.6mm (Length x Width x Height)
Specification
Actuation | Latching |
Back order lead time | 30 Days |
Contact configuration | DPDT |
Contact rating | 2A 250VAC, 5A 125VAC / 28VDC |
Current rating | 5A |
Electrical life | 30,000 Cycles |
Material | DAP & Stainless Steel |
Mounting style | Panel |
Number of poles | 2 |
Number of positions | 2 |
Operating temperature | -30°C to +85°C |
Switch operation | On-On |
Terminal type | Solder |
Voltage rating | 250VAC |
