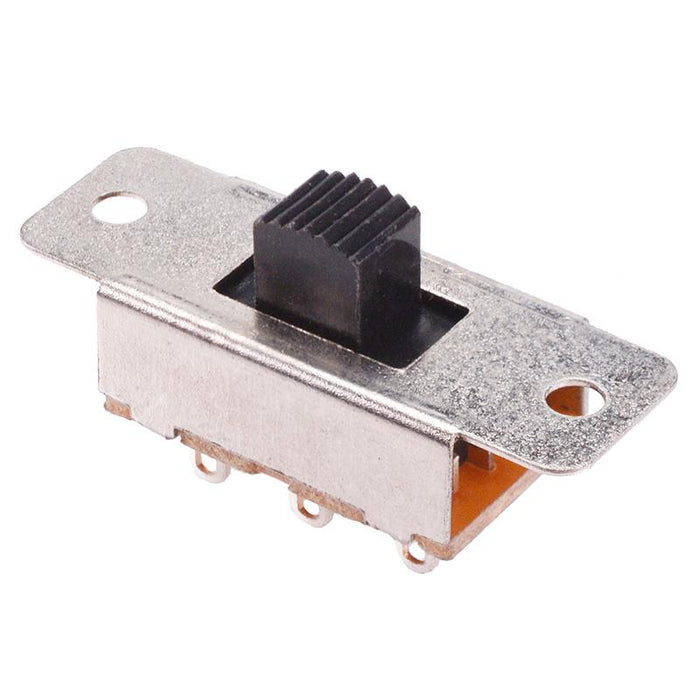

On-Off-On Slide Switch DPDT
SKU 483319
MPN: 483319
Availability:
Out of stock
Sold out
Original price
£0.38
-
Original price
£0.38
Original price
£0.38
£0.38
-
£0.38
Current price
£0.38
On-Off-On Slide Switch featuring solder terminals and DPDT contact configuration, suitable for a wide range of uses.
Rating: 3A 250VAC Actuator height: 7.0mm DPDT contacts 22.0 x 12mm panel cut out size M3 mounting holes Dimensions: 36 x 13.5 x 19mm (Length x Width x Height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Contact Configuration | DPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| MOQ | 5 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Panel Cut Out | 22 x 12mm |
| Switch Operation | On-Off-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
