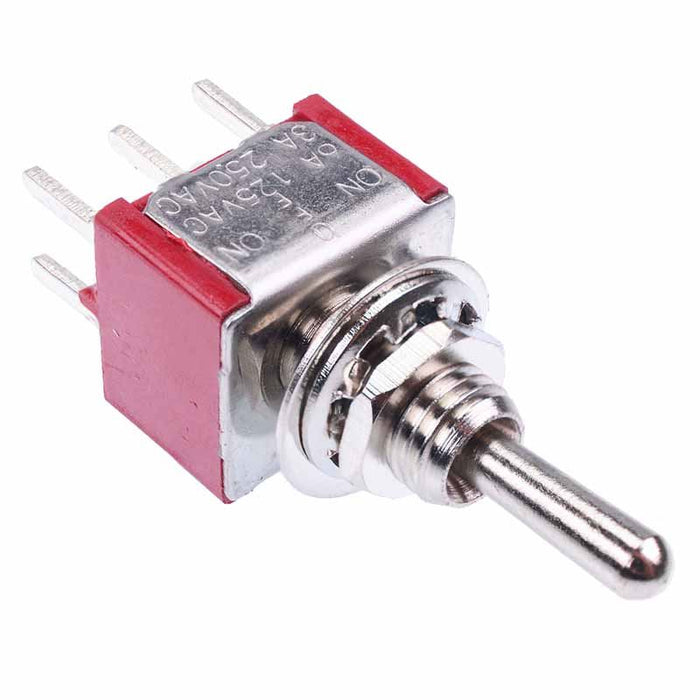

On-Off-On Miniature PCB Toggle Switch DPDT
SKU 482841
MPN: 482841
Availability:
232 in stock
Original price
£0.86
-
Original price
£0.86
Original price
£0.86
£0.86
-
£0.86
Current price
£0.86
Mini On-Off-On toggle switch featuring DPDT contacts and a compact size, suitable for PCB applications requiring a 2 pole small packaged switch.
On-Off-On action
DPDT contacts
Solder PCB terminals
Rating: 6A 125VAC, 3A 250VAC
Panel cut-out: 6mm
Terminal pitch: 4.7mm
Dimensions: 35.6 x 12.7 x 13.2mm (Height x Width x Length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Contact Configuration | DPDT |
| Contact Rating | 6A 125VAC, 3A 250VAC |
| Current Rating | 6A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 6mm |
| Pitch | 4.7mm |
| Switch Operation | On-Off-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
