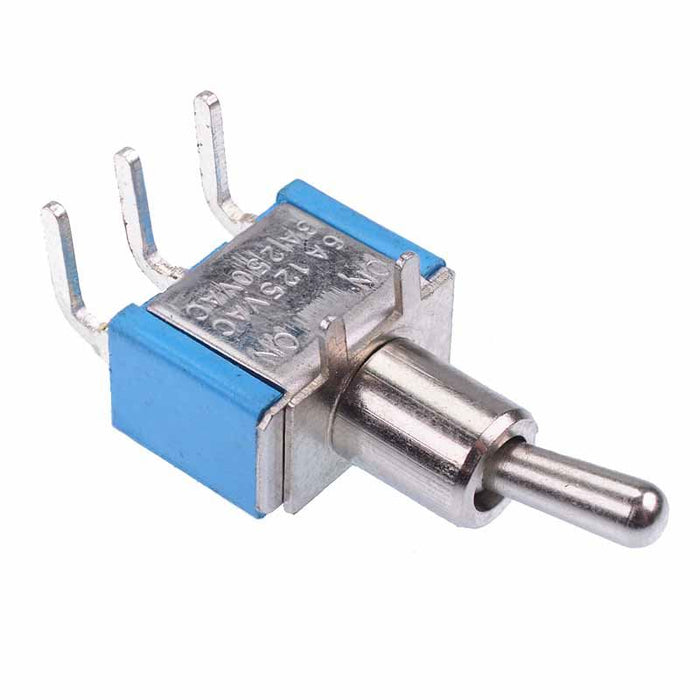

On-Off-On Miniature Horizontal PCB Toggle Switch SPDT
SKU 482846
MPN: 482846
Availability:
295 in stock
Original price
£0.55
-
Original price
£0.55
Original price
£0.55
£0.55
-
£0.55
Current price
£0.55
Mini On-Off-On toggle switch featuring SPDT contacts and a compact size, suitable for mounting horizontally directly to a PCB.
On-Off-On action
SPDT contacts
Solder PCB terminals
Rating: 6A 125VAC, 3A 250VAC
Terminal pitch: 4.7mm
Dimensions: 27 x 13.2 x 11.1mm (Length x Width x Height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Contact Configuration | SPDT |
| Contact Rating | 6A 125VAC, 3A 250VAC |
| Current Rating | 6A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +85°C |
| Pitch | 4.7mm |
| Switch Operation | On-Off-On |
| Terminal Type | Through Hole |
| Voltage Rating | 250VAC |
