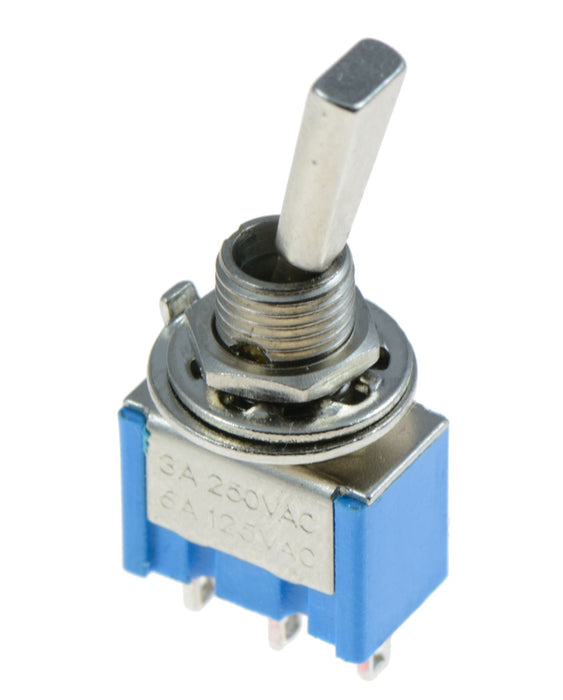

On-Off-On Mini Toggle Switch Flat Handle SPDT
SKU 122019
MPN: 122019
Availability:
Out of stock
Sold out
Original price
£1.01
-
Original price
£1.01
Original price
£1.01
£1.01
-
£1.01
Current price
£1.01
Miniature size toggle switches suitable for a wide range of applications where a small reliable switch is required.
Flat style handle On-Off-On action SPDT contacts 6mm panel cut-out Solder terminals Secured with nut Maximum current: 3A Maximum voltage: 250VAC Maximum Panel Thickness: 3mm Dimensions: 33.9 x 13.2 x 8mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 6mm |
| Switch Operation | On-Off-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
