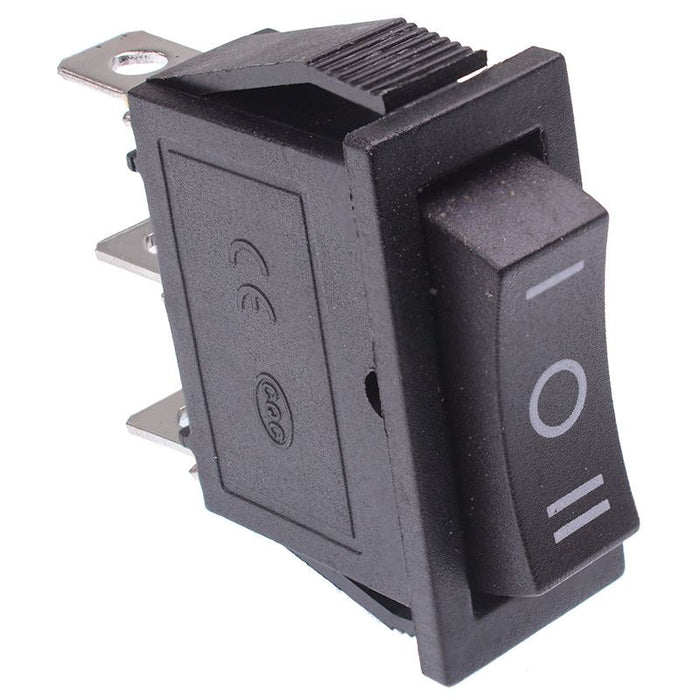

On-Off-On Long Rectangle Rocker Switch SPDT
SKU 132002
MPN: 132002
Availability:
148 in stock
Original price
£0.71
-
Original price
£0.71
Original price
£0.71
£0.71
-
£0.71
Current price
£0.71
Rectangle rocker switch with SPDT contacts and On-Off-On action suitable for snap-in mounting. The switch features a compact housing with a high rating making it suitable for a wide range of applications.
SPDT contacts On-Off-On action 6.3mm quick connect terminals Snap-in mounting Panel cut-out: 28 x 10mm Maximum voltage: 250VAC Maximum current: 15A Dimensions: 36.3 x 14 x 32mm (Height x Width x Length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Contact Configuration | SPDT |
| Contact Rating | 15A 250VAC, 20A 125VAC |
| Current Rating | 20A |
| Electrical Life | 10,000+ Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 28 x 10mm |
| Switch Operation | On-Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
