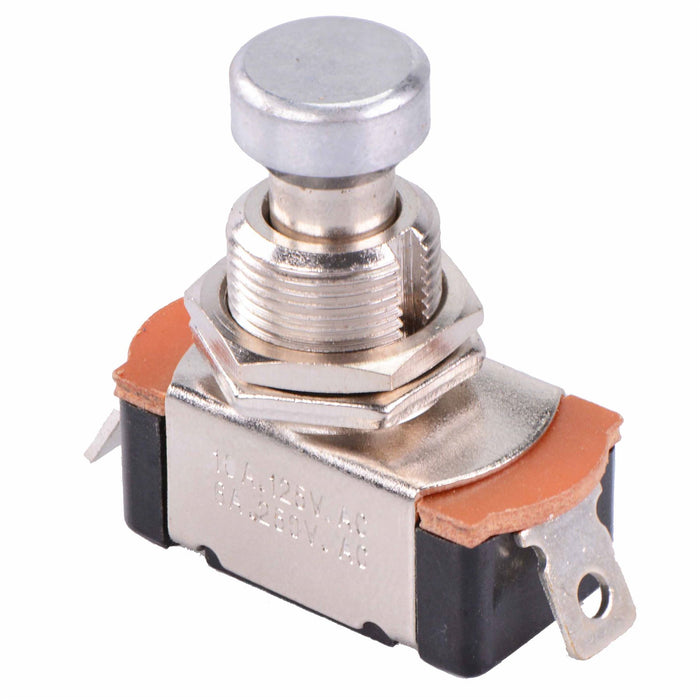

Off-(On) Low Profile Foot Switch SPST
SKU 482222
MPN: 482222
Availability:
111 in stock
Original price
£3.00
-
Original price
£3.00
Original price
£3.00
£3.00
-
£3.00
Current price
£3.00
Low profile footswitch with a momentary operation designed to be operated by foot. The switch featues quick connect erminals and is suitable for panel mounting making it ideal for music applications.
SPST contacts 5.6mm quick connect terminals Requires 12mm panel cut-out Soft touch button Rating: 10A 125VAC, 6A 250VAC Dimensions: 32.4 x 36 x 14mm (Height x Length x Width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPST |
| Contact Rating | 6A 250VAC, 10A 125VAC |
| Current Rating | 10A @ 125VAC |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
