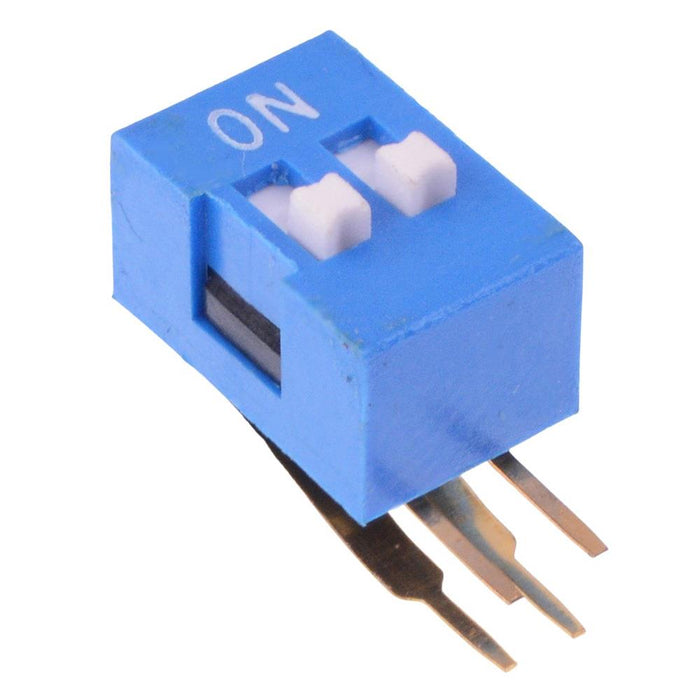

NDA02BT APEM 2-Way Right Angle DIP Switch SPST
by APEM
SKU 487700
MPN: DA02BT
Availability:
637 in stock
Original price
£0.43
-
Original price
£0.43
Original price
£0.43
£0.43
-
£0.43
Current price
£0.43
The NDA02BT is a 2 way right angle DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning wiping contacts and 25mA 24VDC switch rating, suitable for through hole PCB applications.
2 ways Switch rating: 25mA 24VDC Contact rating: 100mA 50VDC Gold plated brass terminals 2.54mm pitch Tape seal
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Material | Gold Plated |
| Contact Rating | 100mA 50VDC |
| Current Rating | 25mA |
| Electrical Life | 2,000 Cycles |
| Material | PBT |
| Mounting Style | Through Hole |
| Number of Positions | 2 |
| Number of Ways | 2 |
| Operating Temperature | -20°C to +70°C |
| Pitch | 2.54mm |
| Product Series | NDA |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
