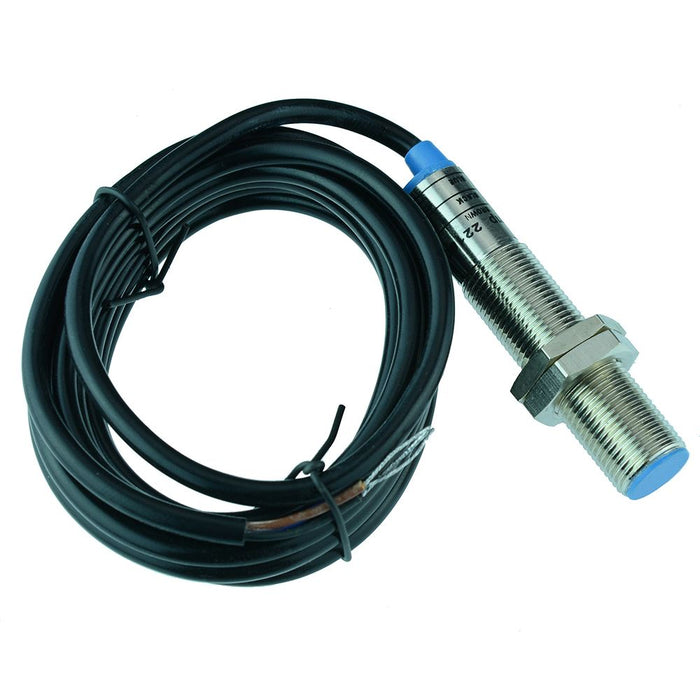

NC 2mm PNP Long Inductive Proximity Sensor - PIP-T12L-011

PIP-T12L-011 inductive proximity sensor featuring chrome plated brass cylindrical body with a long M12 thread. The sensor features normally closed PNP output configuration, and is fully waterproof with an IP67 protection level. Applications include measuring, counting, RPM measuring, chemical, paper manufacturing.

PNP NC output configuration

Mounting distance: 2mm

Sensing distance: 0-1.6mm

Power supply: 10-30VDC

LED indicator provides status indication

Resistance against oil, water, acid, alkaline

Standard sensing object: ferrous metals

Over-current protection

Instructions included
