Momentary PCB Push Button Switch DPDT
SKU 482798
MPN: 482798
Availability:
Out of stock
Sold out
Original price
£0.32
-
Original price
£0.32
Original price
£0.32
£0.32
-
£0.32
Current price
£0.32

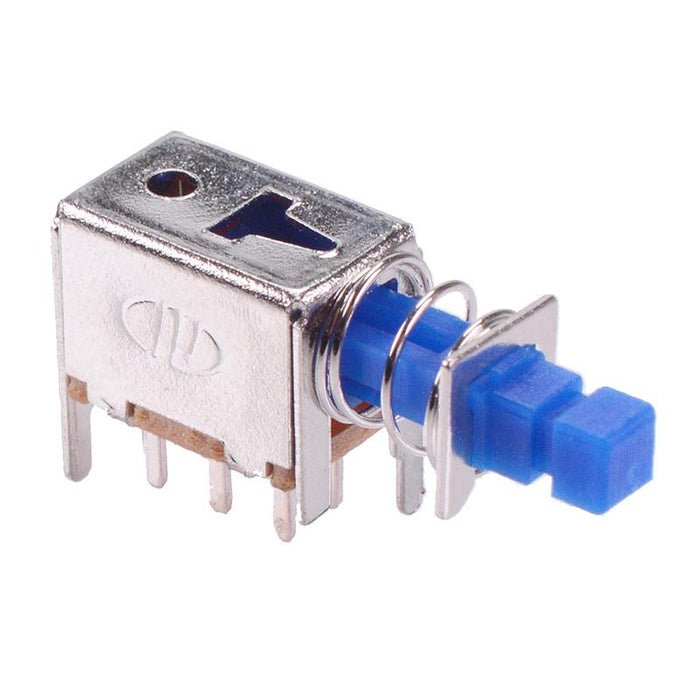

Momentary push button switch featuring DPDT contacts and a compact package, suitable for mounting horizontally to PCBs.
Momentary mechanism DPDT contacts Rating: 0.5A 50VDC Solder PCB terminals
Specification
| Actuation | Momentary |
| Back Order Lead Time | 40 Days |
| Contact Configuration | DPDT |
| Contact Rating | 0.5A 50VDC |
| Current Rating | 0.5A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Switch Operation | On-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 50VDC |
