Momentary On(On) Foot Switch DPDT
SKU 103117
MPN: 103117
Availability:
228 in stock
Original price
£3.95
-
Original price
£3.95
Original price
£3.95
Inc VAT
£3.95
-
£3.95
Current price
£3.95
Inc VAT

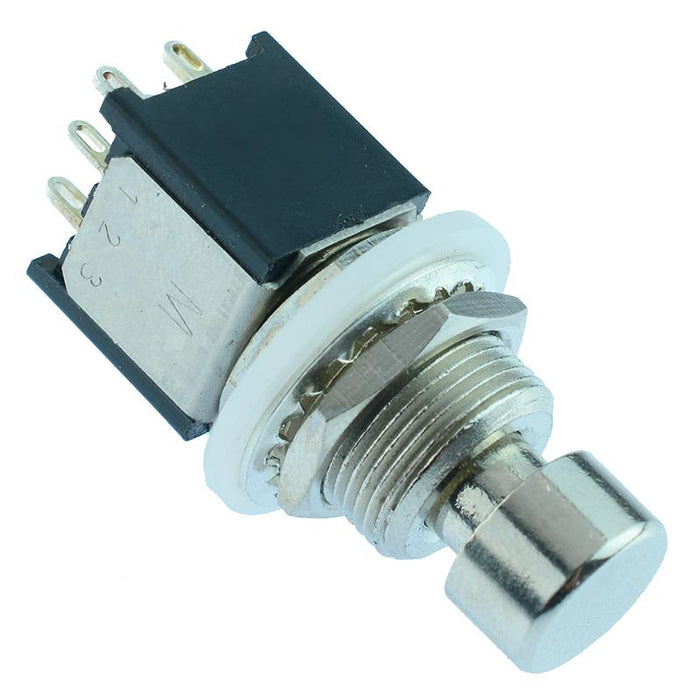

Heavy duty footswitch with a momentary operation designed to be operated by foot. The switch has solder lug terminals and is suitable for panel mounting making it ideal for music applications.
DPDT contacts On-(On) operation Solder lug terminals Requires 12mm panel cut-out Soft touch button 2A maximum current 250VAC maximum voltage Dimensions: 37 x 12.2 x 13.4mm (Height x Width x Length) Maximum Panel Thickness: 4mm
Specification
Actuation | Momentary |
Back order lead time | 40 Days |
Contact configuration | DPDT |
Contact rating | 2A 250VAC, 4A 125VAC |
Current rating | 4A @ 125VAC |
Illuminated | No |
Illumination colour | Non Illuminated |
Mounting style | Panel |
Number of positions | 2 |
Panel cut out | 12mm |
Switch operation | On-(On) |
Terminal type | Solder |
Voltage rating | 250VAC |
