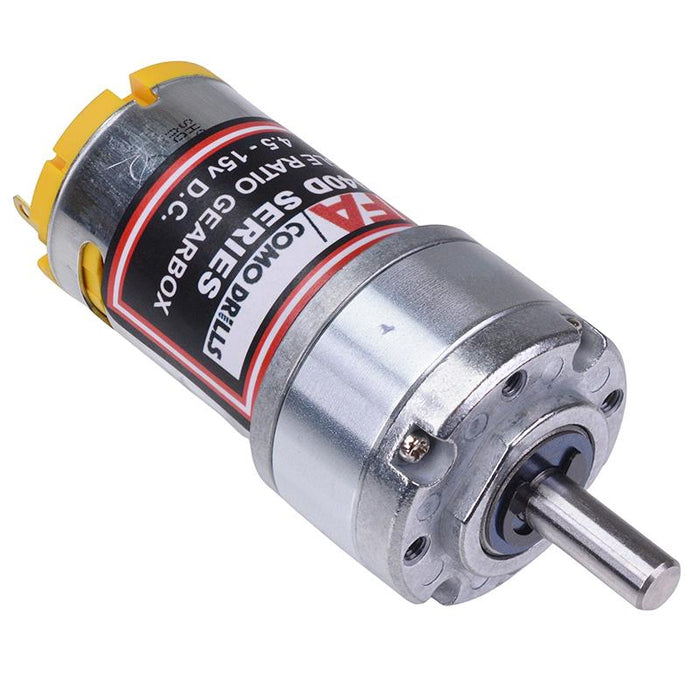

MFA 940D1001 Epicyclic 100:1 Gearbox and Motor 4.5-15V
by MFA Como
SKU 485472
MPN: 940D1001
Availability:
Only 3 left!
Original price
£35.49
-
Original price
£35.49
Original price
£35.49
£35.49
-
£35.49
Current price
£35.49
The 940D1001 is a 4.5-15V 5 pole DC motor with a 100:1 single ratio gearbox. The metal gearbox incorporates sleeved bearings, enabling the high torque transfer from the motor to be transmitted through the gearbox. The motors are suitable for use with robots, models and heavy industrial applications.
100:1 gear ratio
Operating range: 4.5-15V
Nominal voltage: 12V
No load current: 0.18A
No load speed: 11,646RPM
Geared speed: 116RPM
5.5mm output shaft
Dimensions: 93.9 x 32mm (length x diameter)
Weight 211g
Specification
| Back Order Lead Time | 5 Days |
| Diameter | 32mm |
| Length | 81.1mm |
| No Load Current | 0.18A |
| No Load Speed | 116rpm |
| Operating Voltage | 4.5-15V |
| Rated Load Current | 0.99A |
| Rated Voltage | 12V |
| Shaft Diameter | 5.5mm |
| Shaft Length | 17.0mm |
