Medium Lever V3 Microswitch SPDT 16A 250VAC
SKU 480398
MPN: 480398
Availability:
Out of stock
Sold out
Original price
£1.09
-
Original price
£1.09
Original price
£1.09
£1.09
-
£1.09
Current price
£1.09

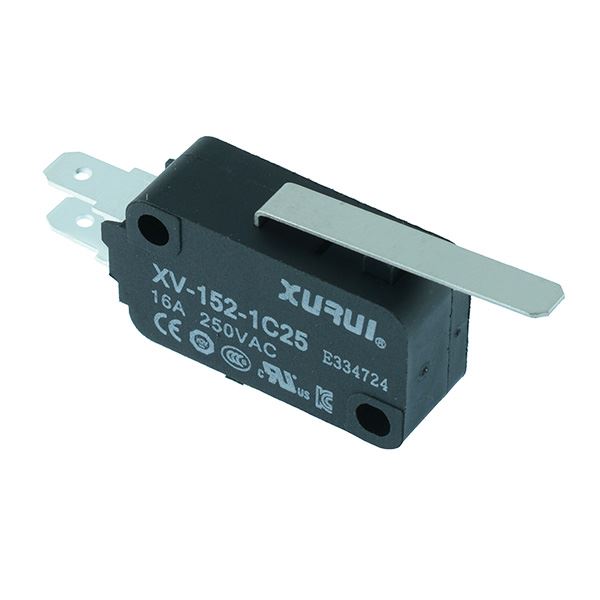

Standard size V3 microswitch featuring a lever actuator and SPDT contacts. The switch is connected using the 4.8mm terminals and is suitable for a wide range of applications due to its compact size and reliability.
Medium lever actuator
Rating: 15A 250VAC
NO / NC contacts
4.8mm quick connect terminals
1,000,000 operation life
125g operating force
14g release force
Specification
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Rating | 16A 250VAC |
| Current Rating | 16A |
| Electrical Life | 100,000 Cycles |
| Number of Positions | 2 |
| Operating Force | 125g |
| Operating Temperature | -25°C to +80°C |
| Protection Level | IP40 |
| Release Force | 14g |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
