Large SMD Grade 2 Armoured NO Proximity Switch and Magnet Set 500mA 50V - CEA403/BK, S2022DR
by Comus
SKU 552637
MPN: S2022DRBK
Availability:
Only 1 left!
Original price
£15.45
-
Original price
£15.45
Original price
£15.45
£15.45
-
£15.45
Current price
£15.45

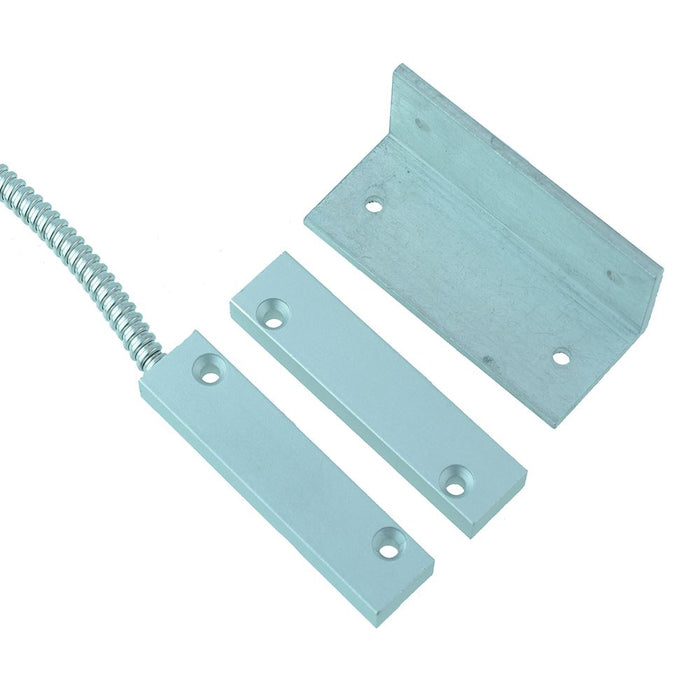

The CEA403/BK is a flush mounting proximity reed switch and magnet set, featuring normally open contacts and aluminium housing. The switch is suitable for applications including alarm systems, appliance switching, production automation and safety door guards.
Security grade 2 to BS EN 50131-1 750mm cable with 500mm armouring Normally open contacts Supervisory loop Operating distance: 30mm Maximum switching voltage: 50V AC/DC Maximum switching current: 0.5A Maximum switching capacity: 10W/VA Aluminium housing
Specification
| Back Order Lead Time | 180 Days |
| Carry Current | 0.8A |
| Contact Configuration | SPST-NO |
| Material | Aluminium |
| Maximum Switching Capacity | 10W/VA |
| Maximum Switching Current | 0.5A |
| Maximum Switching Voltage | 50VAC/DC |
| Operating Temperature | -40°C to +85°C |
