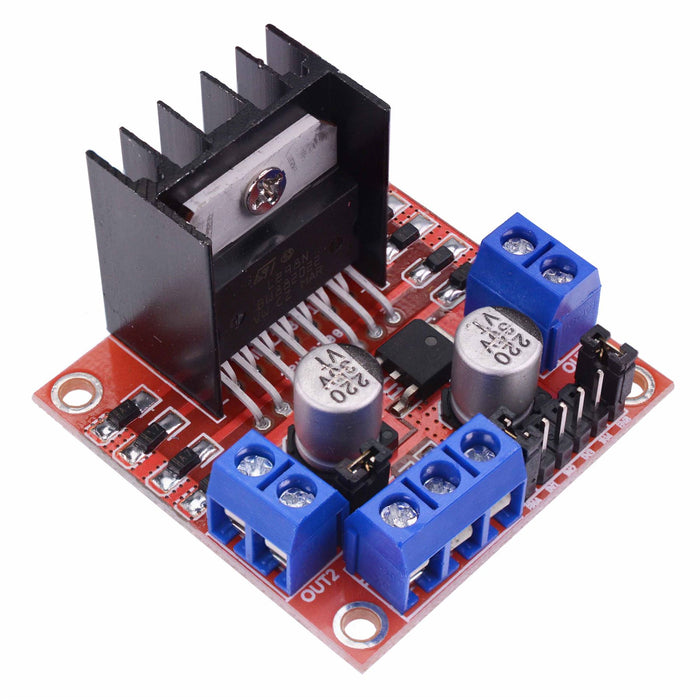

L298N DC Stepper Motor Dual H Bridge Drive Controller Board Module

The DC stepper motor module is a dual bidirectional motor driver based on the popular L298N dual H-bridge integrated circuit. The circuit allows you to independently control two DC motors or a single 2-phase or 4-phase stepper motor. The module is suitable for robotic applications.

L298N dual H-bridge driver chip

Logical voltage: 5V

Logical current: 0 to 36mA

Power supply: 5V to 35VDC

Peak current: 2A (max single bridge)

Max power: 20W

Dimensions: 55 x 60 x 30mm
