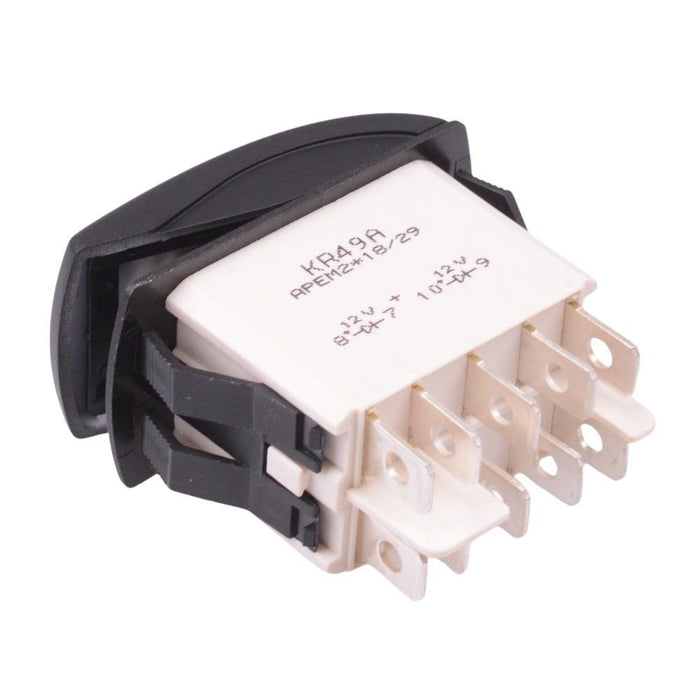

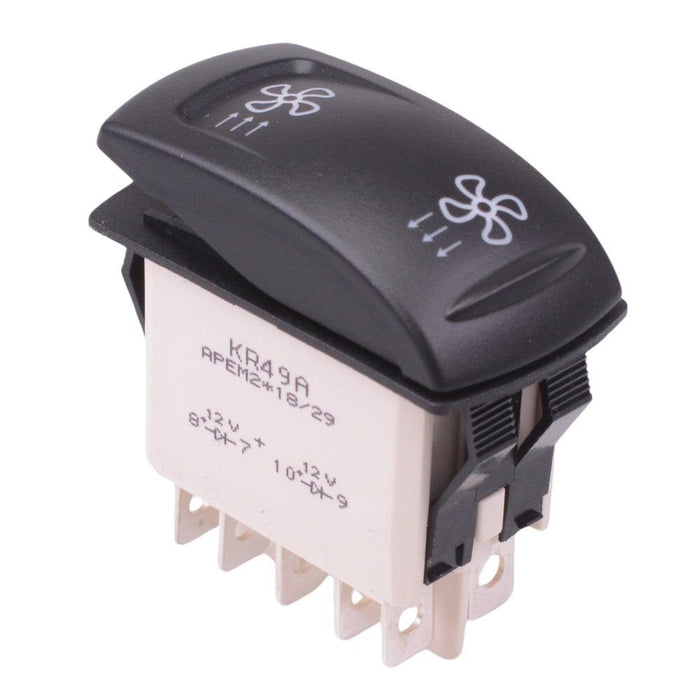

KR49CAXFFG22N58XX59 On-Off-On Auto Rocker Switch Yellow 12V Extraction / Pumping in DPDT
by APEM
SKU 490056
MPN: KR49CAXFFG22N58XX59
Availability:
89 in stock
Original price
£16.34
-
Original price
£16.34
Original price
£16.34
£16.34
-
£16.34
Current price
£16.34
The KR49CAXFFG22N58XX59 is an attractive rugged automotive rocker switch from the KR series by APEM. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
On-Off-On DPDT contacts Solder/Quick connect terminals 12V Yellow illumination Silver contacts Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm Compatible with U2292 and U3152 connector
Specification
| Actuation | Latching |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 5A 24VDC |
| Current Rating | 5A |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 12V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8mm to 4.6mm |
| Switch Operation | On-Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
